HSD Sound Systems · Point-Source Top

HSD Mantarray 90

Model PS90

Wide-coverage point source with extended low-frequency response.

The Mantarray 90 is a robust point-source loudspeaker engineered for exceptional clarity and extended low-frequency response down to 90 Hz. With a nominal 90 x 40-degree coverage pattern and a precision 12" plus 1.4" driver configuration, it delivers consistent reproduction across a broad frequency range. Sixteen M10 fly points with optional L-track or flybar accessories give it flexible rigging for touring and installation. Hand-built by Hennessey Sound Design in Massachusetts, and backed by a 5-year limited warranty.

Call for pricing request a quote

Built to order. Quote includes freight, system design, and current lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

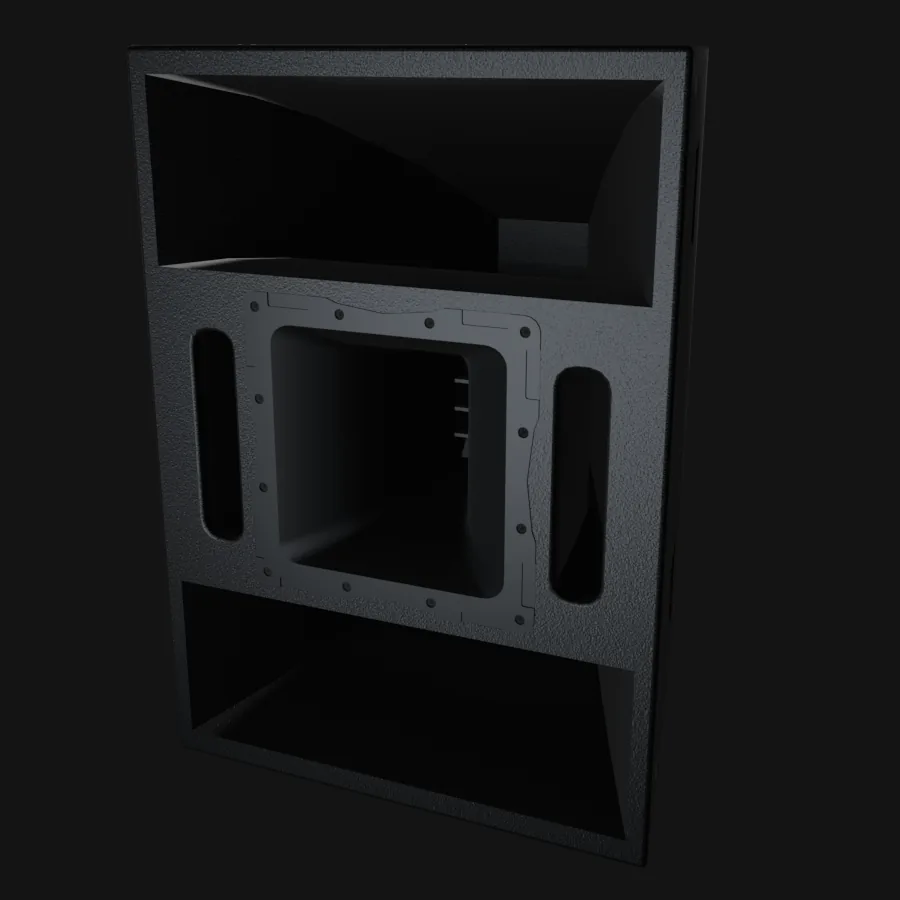

HSD Sound Systems Mantarray 90 point-source top by Hennessey Sound Design

Amplification

Passive cabinet, amplification required

The Mantarray 90 is bi-amped: LF (800 W) and HF (100 W) sections at 8 ohms each. One four-channel HSD KP Series amp runs a pair with FIR presets.

2 amp channelsper cabinet, 8Ω sections

Coverage

90×40wide-room point source

Drivers

12″+1.4″precision point source

Response

90Hzto 20 kHz (-3 dB); 75Hz at -10 dB

Weight

100 lbs16 × M10 fly points

Full specifications

HSD Mantarray 90 (PS90) specs

Factory specifications from Hennessey Sound Design. Download the cut sheet for drawings and driver details.

Frequency Response	90 Hz - 20 kHz (-3 dB); 75 Hz - 20 kHz (-10 dB)
Sensitivity	HF 109 dB / LF 108 dB (1W/1m)
Drivers	1 x 12" woofer, 1 x 1.4" compression driver
Power Handling	LF 800 W / HF 100 W continuous (1,600 / 200 W program)
Impedance	8 ohms nominal per section
Coverage	90 x 40 degrees (H x V)
Dimensions	24" W x 40.25" H x 24" D
Weight	100 lbs
Connectors	2 x NL4

HSD Mantarray 90 cut sheet (PDF)

Why buy from Fullblast

An HSD system is a build, not a box. We manage the whole thing.

Authorized HSD dealer

Fullblast Sound is one of only three authorized HSD Sound Systems dealers in the United States. Factory pricing, factory support, and a direct line to the Massachusetts shop on every order.

Real dealer support

We spec the system against your room and application, handle freight and logistics, and stay on call after delivery. Talk to us before you order and we will get the design right the first time.

Nationwide freight

Every HSD cabinet ships crated freight from the factory. We quote and coordinate delivery to your dock or venue anywhere in the country as part of the system price.

Financing available

Spread an HSD system across payments instead of a single check. See financing options or ask for terms with your quote.

Get a real quote

Send a system spec, not a price shopping number

Tell us the room, the audience size, and what you run today. We come back with the right HSD build, amplification, freight, and current factory lead time. One short form.

Request Quote Or call 210.489.0492

Same business day response.

Buyer research

Questions buyers ask about the Mantarray 90

Common pre-purchase questions on the HSD Mantarray 90.

How is the Mantarray 90 different from the Mantarray 60?

Two things: coverage and reach. The 90 throws a 90 × 40-degree pattern for wide rooms and shorter throws, and its low-frequency response extends to 90 Hz (-3 dB) / 75 Hz (-10 dB), deep enough to cross straight into subwoofers without a dedicated mid-bass layer. The Mantarray 60 trades width for array behavior and longer throw.

What amplifier drives the Mantarray 90?

Two channels per cabinet: LF 800 W and HF 100 W continuous, both 8 ohms nominal. A four-channel HSD KP Series amp runs a stereo pair of Mantarray 90s with HSD FIR presets per channel.

How does it rig?

Sixteen M10 fly points are built into the cabinet, with optional L-track or flybar accessories for flown deployments. At 100 lbs it also ground-stacks cleanly on subs for installs and pop-up stages.

What subs pair with the Mantarray 90?

Because it holds -3 dB to 90 Hz, it crosses directly into HSD's FLH subs. The Switchback or Eagle 18s suit compact rigs; the Tomahawk and BattleAxe 21s bring festival-scale weight underneath.
