HSD Sound Systems · Point-Source Top

HSD Haymaker

Model PS181041

Tri-amped 3-way point-source that punches far above its footprint.

The Haymaker is a robust 3-way, tri-amped loudspeaker built around an 18" woofer, a 10" mid driver, and four 1" compression drivers, delivering exceptional clarity and impact across the full range. With integrated fly points and customizable waveguides (90/60/40-degree horizontal), it works as a standalone top for smaller productions and scales into a large-format powerhouse when paired with HSD subwoofers. Ideal for touring, venue installs, and pop-up stages. Hand-built by Hennessey Sound Design in Massachusetts, and backed by a 5-year limited warranty.

$8,500 retail

Built to order. Quote includes freight, system design, and current lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

HSD Sound Systems Haymaker point-source top by Hennessey Sound Design

Amplification

Passive cabinet, amplification required
The Haymaker is tri-amped: the LF, MF, and HF sections each take a dedicated amplifier channel (8 ohms per section). A four-channel HSD KP Series amp runs one Haymaker with a channel to spare; step up to the 4-10KP for maximum LF headroom. HSD tunings load from the amp's 100-preset library with FIR processing.
3 amp channelsper cabinet, 8Ω sections
Format
3-waytri-amped point source
Drivers
18″+10″+4×1″LF / MF / 4× compression drivers
Response
60Hzto 20kHz (-3 dB); 50Hz at -10 dB
Weight
155 lbs27″ W × 32″ H × 27″ D

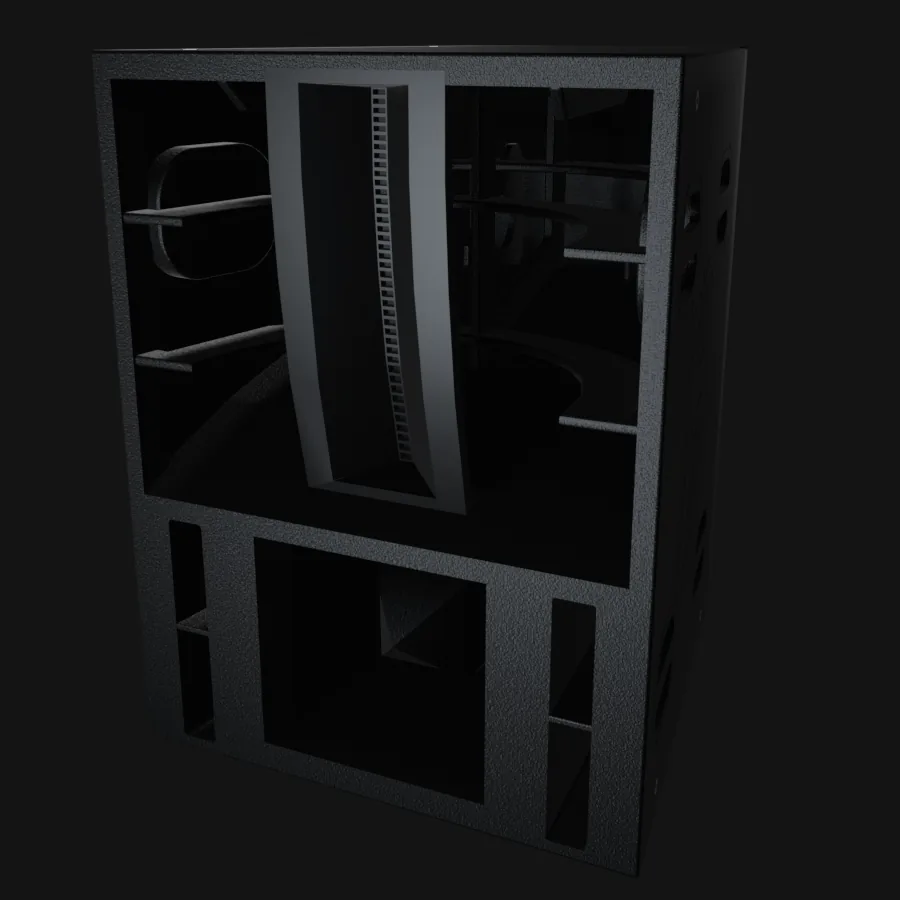

HSD Sound Systems Haymaker point-source top, alternate angle HSD Sound Systems Haymaker point-source top, detail view

Full specifications

HSD Haymaker (PS181041) specs

Factory specifications from Hennessey Sound Design. Download the cut sheet for drawings and driver details.

Frequency Response60 Hz - 20 kHz (-3 dB); 50 Hz - 20 kHz (-10 dB)
SensitivityHF 105 dB / MF 100 dB / LF 97 dB (1W/1m)
Drivers1 x 18" woofer, 1 x 10" midrange, 4 x 1" compression drivers
Power HandlingLF 1,200 W / MF 400 W / HF 400 W continuous (2,400 / 800 / 800 W program)
Impedance8 ohms nominal per section
Coverage90 x 15 / 60 x 15 / 40 x 15 degrees (H x V, selectable waveguides)
Dimensions27" W x 32" H x 27" D
Weight155 lbs
Connectors2 x NL8
HSD Haymaker cut sheet (PDF)

Why buy from Fullblast

An HSD system is a build, not a box. We manage the whole thing.

01

Authorized HSD dealer

Fullblast Sound is one of only three authorized HSD Sound Systems dealers in the United States. Factory pricing, factory support, and a direct line to the Massachusetts shop on every order.

02

Real dealer support

We spec the system against your room and application, handle freight and logistics, and stay on call after delivery. Talk to us before you order and we will get the design right the first time.

03

Nationwide freight

Every HSD cabinet ships crated freight from the factory. We quote and coordinate delivery to your dock or venue anywhere in the country as part of the system price.

04

Financing available

Spread an HSD system across payments instead of a single check. See financing options or ask for terms with your quote.

Get a real quote

Send a system spec, not a price shopping number

Tell us the room, the audience size, and what you run today. We come back with the right HSD build, amplification, freight, and current factory lead time. One short form.

Request Quote Or call 210.489.0492

Same business day response.

Buyer research

Questions buyers ask about the Haymaker

Common pre-purchase questions on the HSD Haymaker.

Q1

What amplifier drives the Haymaker?

The Haymaker is a passive, tri-amped design, so plan three amplifier channels per cabinet: LF (1,200 W continuous), MF (400 W), and HF (400 W), each at 8 ohms nominal. One four-channel HSD KP Series amplifier (4-6KP: 4 × 1,500 W into 4 ohms) runs a single Haymaker with a spare channel, and the 4-10KP adds LF headroom. HSD presets with FIR crossovers load directly on the amp.

Q2

Which waveguide option should I order?

The Haymaker ships with customizable horizontal waveguides: 90 × 15 degrees for wide, short-throw rooms; 60 × 15 for general-purpose coverage; and 40 × 15 for long throw or tighter side-by-side arrays. Tell us the room and throw distance and we will spec the pattern with you before the build starts.

Q3

Can the Haymaker fly?

Yes. Integrated fly points are built into the cabinet, and at 155 lbs it is manageable for flown or ground-stacked deployment. It works as a standalone top for smaller productions and scales into a large-format system over HSD mid-bass and subs.

Q4

What subs pair with the Haymaker?

For touring weight, the Tomahawk 21″ FLH is the classic partner. For maximum low-end authority, the BattleAxe or Battlehawk reach usable output into the mid-20 Hz range. The Hammer dual-18 mid-bass horn uses an altered version of the Haymaker's own horn path, so the voicing match through the mid-bass region is seamless.

Q5

Is the Haymaker built to order?

Yes. Every HSD cabinet is CNC-cut, assembled, polyurea-coated, and tested at the Hennessey Sound Design shop in Massachusetts. Lead times are typically around 90 days, and every cabinet carries HSD's 5-year limited warranty with free factory training when your system is complete.

System design

This pairs well with

The Haymaker works standalone over subs on smaller shows and anchors full large-format HSD systems.

Mid-bass extension

Hammer dual-18 horn

Built on an altered version of the Haymaker's horn path with 108 dB sensitivity. The natural mid-bass layer between Haymaker tops and HSD subs.

Touring subwoofer

Tomahawk 21″ FLH

100 lbs lighter than the BattleAxe with 107 dB sensitivity. The truck-pack-friendly low end under Haymaker tops.

Amplification

HSD KP Series DSP amps

Three channels per Haymaker with FIR presets, per-channel limiting, and Smaart integration. One 4-channel KP amp per cabinet with a channel to spare.

Explore the HSD lineup

Where the Haymaker sits in the catalog

One cabinet in a system. See the full HSD Sound Systems hub.

Point-source tops

HaymakerTri-amped 18/10/4×1 point source. Selectable waveguides.
UppercutMedium-format tri-amped top. Full range to 45 Hz. SouthpawHigh-mid extension for fills, delays, monitors. 50 lbs. Mantarray 60Array-optimized 60×40 point source. Mantarray 90Wide 90×40 coverage, reaches 90 Hz alone.

Mid-bass horns

HammerDual-18 FLH mid-bass. 108 dB sensitivity. V-HornCompact 15″ mid-bass horn. Van-friendly. Cannon18″ bandpass horn. Rides on big sub stacks.

Subwoofers

WarhammerDual-18 FLH sub. Sustained 140 dB+. Switchback18″ FLH to 32 Hz. Truck-pack footprint. EagleCluster-optimized 18″ FLH to 29 Hz. BattleaxeThe renowned 21″ FLH. Usable to 25 Hz. BattlehawkThe BattleAxe evolved. 3,000 W, flatter response. Tomahawk21″ FLH, 100 lbs lighter. Built for the road. Sherman24″ flagship. One Sherman = two BattleAxes.

Monitors

DJ18 Monitor18″ booth sub to 27 Hz. Passive or powered. Reference 12Coaxial 12″ reference monitor. 80×80.

Line array

BallistaMedium-format line array module. Four-way passive.

Amplifiers

KP Series Amplifiers2–4 ch DSP amps, up to 10 kW. FIR at 96 kHz. KD Series Amplifiers4-ch Class-D, up to 20 kW. Universal voltage.

Documentation

Cut sheet

HSD Haymaker cut sheet (PDF) Full HSD Sound Systems lineup
