The DVS lineup at FBS
The full DVS catalog at Fullblast Sound. Each panel built for a specific viewing distance, brightness, and environment. We spec the right one against your room and your application.

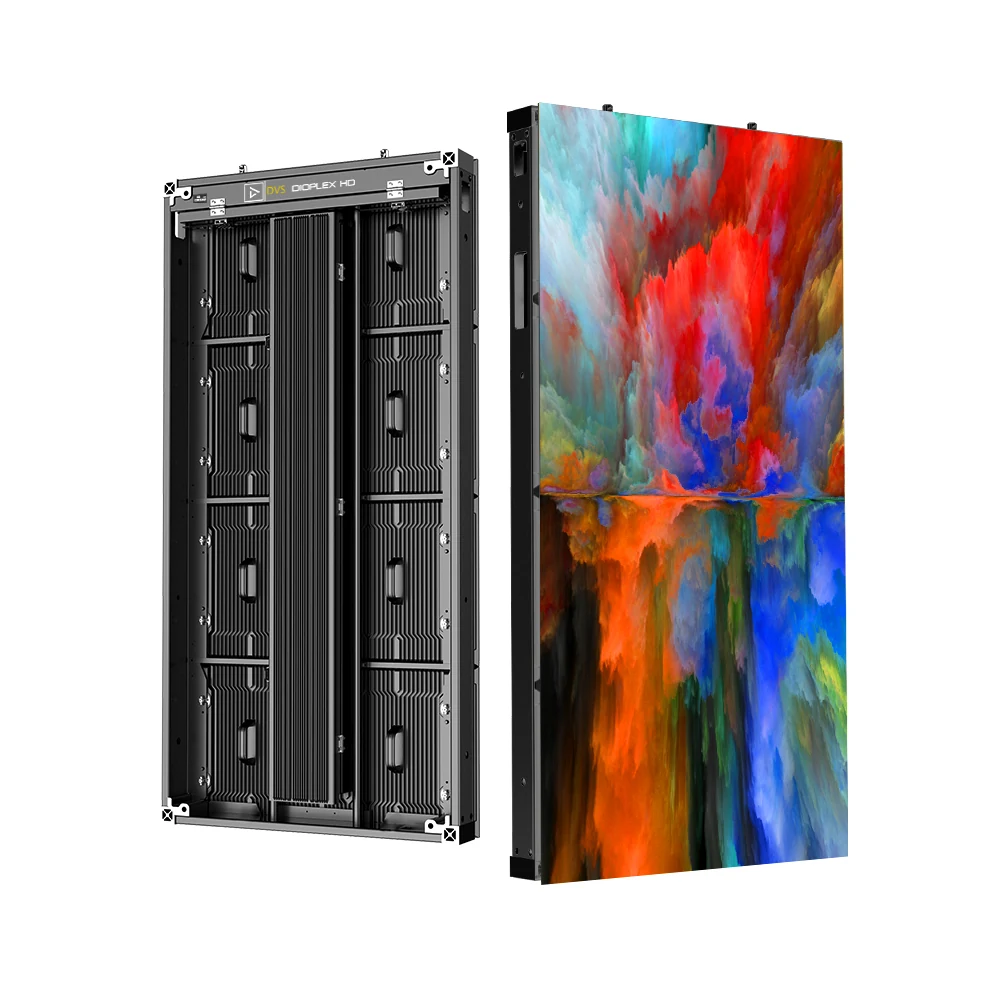

Our flagship outdoor cabinet. 3.9 mm pixel pitch, IP67 weather rated, 5,000+ NITS, twist-lock weather-tight modules. The 12-panel build at our Austin sportsbar runs this cabinet.

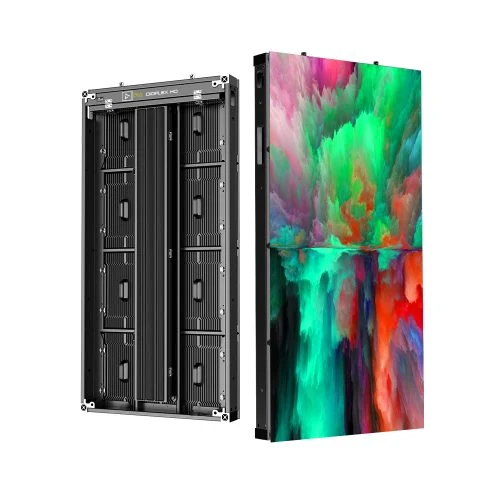

One pitch up from the HD-3 for longer viewing distances. Same IP67 enclosure, same twist-lock service philosophy, more economical at scale for larger outdoor walls.

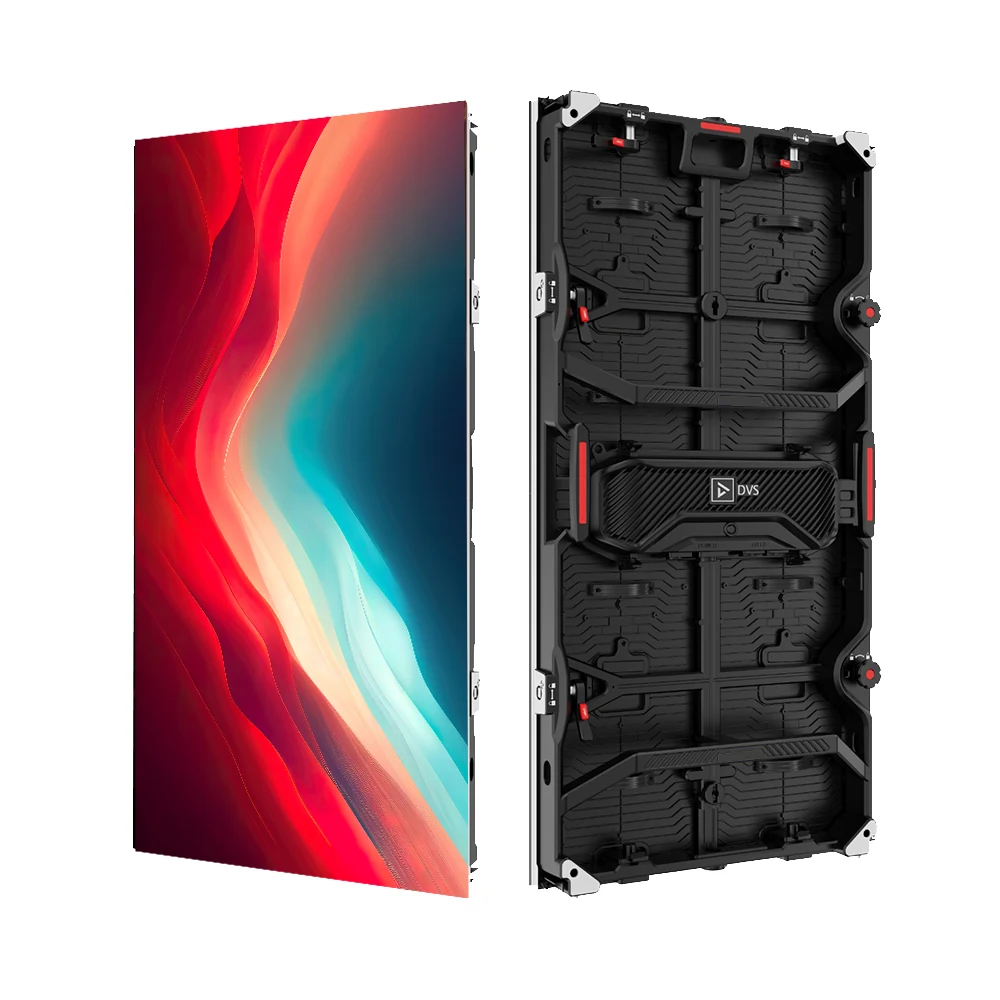

Higher resolution outdoor option for closer viewing. 2.9 mm pitch at IP65 rating, 500 by 1000 mm cabinet. Right for outdoor restaurant facades, retail signage, and patio walls where viewers walk closer.

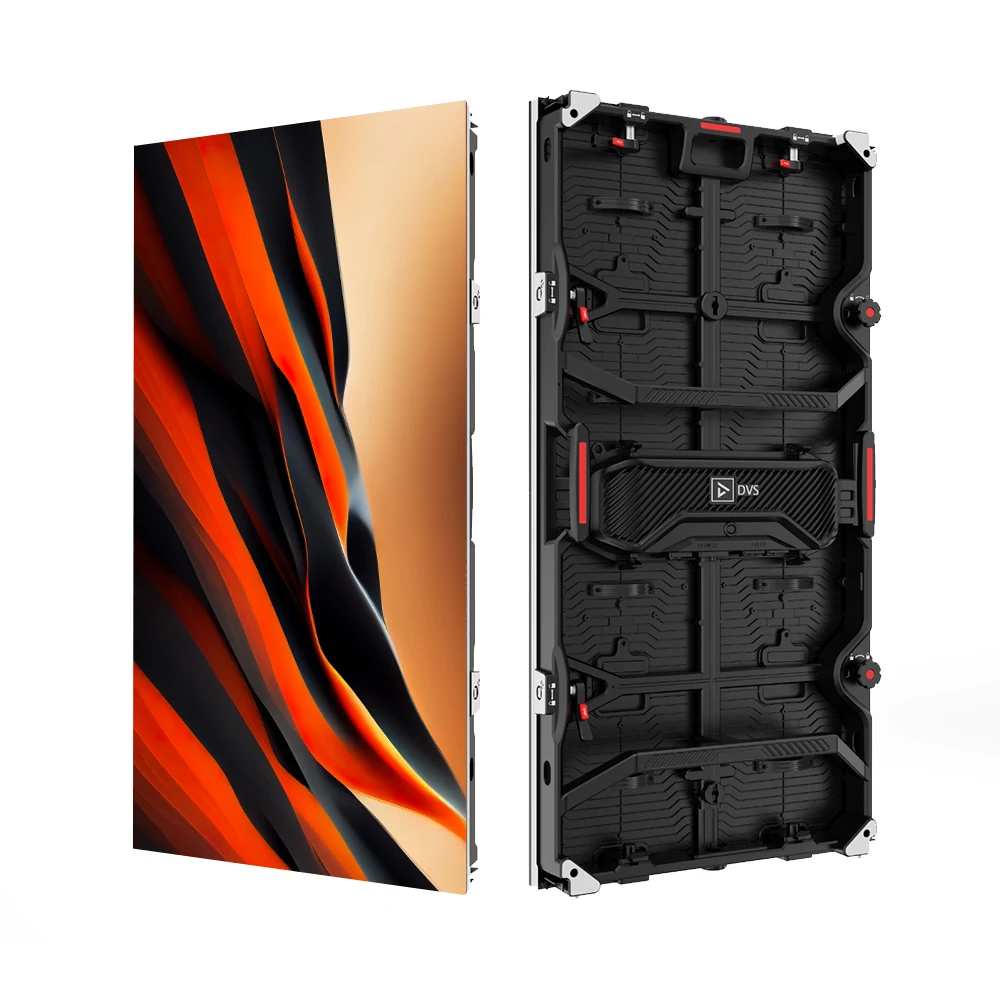

The 3.9 mm Vizra outdoor variant at IP65. Same pitch as the DioPlex HD-3, slightly lower weather rating, more economical for outdoor builds that do not need full IP67 immersion protection.

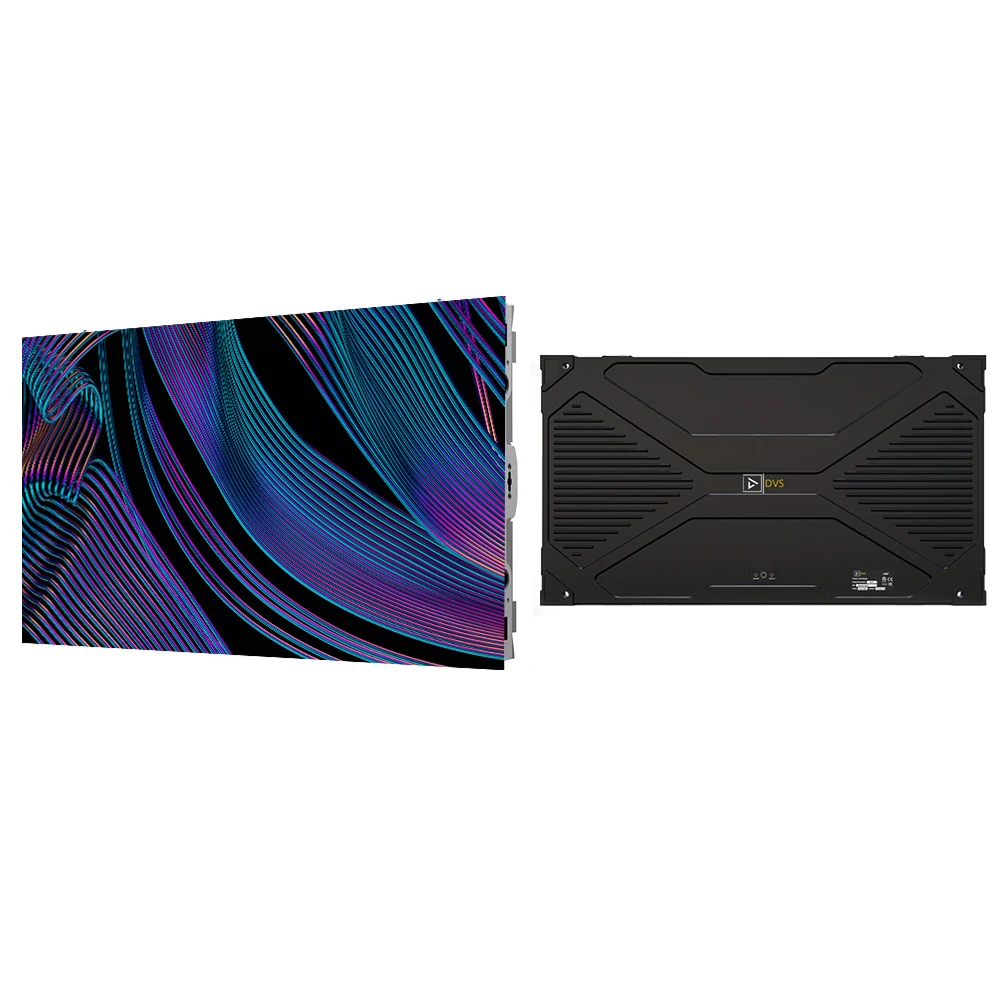

Indoor flagship for close-viewing applications. 0.7 mm COB micro-LED ultra-fine pitch. The right answer for virtual production volumes, broadcast studios, executive briefing rooms, and lobby feature walls where viewers stand within arm's reach.
Weather-tight twist-lock LED modules, detachable PSU housings, fully enclosed IP-rated power and data connections. Front and rear access mean a tech can swap a single module without pulling the cabinet from the wall.
Two ways to buy
Fullblast Sound sells LED video walls as a turnkey package to venue owners and as a programmed-ready drop-in to AV integrators. The hardware and the engineering are identical. What changes is where our work stops and yours begins.
For venue owners · Turnkey
For bar, nightclub, sportsbar, restaurant, hotel, and event-venue owners who want one company to handle the whole video wall build. No coordinating multiple vendors, no figuring out which pixel pitch matches your viewing distance, no scope-creep mid-install. We do the whole thing.
For AV integrators · Spec, ship, support
For AV integrators, contractors, and design-build firms who want DVS LED dropped into a project they are running. We spec the wall against your design, quote DVS cabinets at integrator pricing, ship to your site, and coordinate during commissioning. You handle the install and the room.
Watch the install
A 12-panel DVS DioPlex HD-3 build at an Austin outdoor sportsbar. 3.9 mm pixel pitch, IP67 weather rated, magnet-secured modules. The whole product in two minutes.
What sets DVS apart
This is the LED platform we spec when the wall has to look right in direct sun, take weather year-round, and stay serviceable a decade after install.
01 · Weather
The outdoor DioPlex HD-3 is IP67 rated with water-drainage software built into the cabinet. Handles direct Texas sun, summer rain, and seasonal extremes without intervention. No external weather hood required.
02 · Service
Weather-tight twist-lock LED modules and fully enclosed IP-rated power and data connections. Front and rear access mean a tech can swap a module without removing the cabinet from the wall. No specialty rigging, no shop visits.
03 · Install
Cabinets mount via lag bolts or standard fasteners through holes in the frame. Power and data connections live inside the cabinet, so nothing is visible from the side or back. Clean install on day one.
04 · Output
Heat-sink modules in the frame keep the cabinet running cool at full brightness. The image stays high-contrast even in direct outdoor sun, which is the failure mode that kills most consumer-grade outdoor displays.
DVS DioPlex HD-3
The cabinet we installed at the Austin outdoor sportsbar. Right balance of resolution, brightness, weatherization, and serviceability for outdoor patio viewing.
| Spec | DioPlex HD-3 | What it means |
|---|---|---|
| Pixel pitch | 3.9 mm | Reads clean from about 12 feet away. Right for outdoor patio seating. |
| Cabinet dimensions | 19.6 × 39.3 × 3.7 in | About 500 × 1000 × 86 mm. Tile horizontally or vertically. |
| Cabinet weight | 35 lb | Light enough to mount on a flat wall with standard lag bolts. No specialty rigging. |
| Brightness | 5,000+ NITS | Reads in direct sun. Stays high-contrast in broad daylight. |
| Refresh rate | 1920+ Hz (3840+ Hz optional) | Standard refresh handles streaming and signage. Optional high refresh for broadcast and camera environments. |
| LED type | SMD1921 | High-output high-contrast surface-mount LEDs. Permanent install grade. |
| Weather rating | IP67 | Full protection against dust and immersion-level water. Tapered water drainage soffits built in. |
| Service access | Front + rear | Weather-tight twist-lock LED modules. Swap from the front without pulling the cabinet. |
| Cooling | Convective aluminum heat-sink | Fanless cooling. Heat-sink modules in the frame. No moving parts to fail outdoors. |
| Power + data connections | Detachable PSU housing · IP-rated | Fully enclosed weatherproof power and data terminations. Internal cabling, nothing visible from side or back. |
| Mounting | Lag bolts to flat surface | Standard fasteners through frame holes. Easy to expand by adding cabinets. |
| Standard build (Austin sportsbar) | 12 cabinets (2H × 6W) | About 39 inches tall by 117 inches wide. Two-tall, six-wide outdoor wall. |
Where it lives
The same DVS platform scales from a single column behind a DJ booth to a wrap-around nightclub display. Custom builds beyond catalog also live here.
Nightclub / Bar
Outdoor patio walls and indoor wraparound displays behind the DJ booth. Content-driven through Resolume or similar. We have a 12-panel DioPlex HD-3 install at an Austin outdoor sportsbar.
Outdoor LED Displays
Permanent outdoor LED for sportsbar patios, restaurant exteriors, retail signage, drive-up displays. Direct sun, year-round weather, no babying.
Custom integration
A 6th Street Austin custom build with a low-resolution LED video ceiling tied to pixel-mapped backlit wall art. Beyond catalog. Talk to us about your custom build.
House of Worship
DVS DioPlex HX or ViuPlex 0.7 mm micro-LED for sanctuary IMAG, scripture display, lobby digital signage. We design against your viewing distances and ambient light.
Events / Production / Rental
Modular LED for ballrooms, event halls, and touring rigs. DVS PRO Touring panels plus DVS processors and video splicers for multi-source switching during events.
Virtual Production / XR
Ultra-fine-pitch indoor LED with high refresh for film and TV virtual production volumes. DVS XR-ready processors handle the studio side. Spec against your camera setup.
Tradeshow + Digital Signage
Trade-show booth walls, brand activations, lobby digital signage, drive-thru menu boards. DVS has indoor and outdoor cabinet options that scale to any booth size.
Processors + control
DVS All-In-One Processors, Sending Boxes, Media Players, Video Splicers, XR-Ready Processors, Fiber Converters. Plus DVS's own Volux LED lighting brand integrated through FBS.
Sports + Arenas
Scale the same DVS platform for stadium concourses, arena scoreboard supplements, and venue lobbies. DioPlex HD series + DioPlex HX UHD for the long viewing distances.

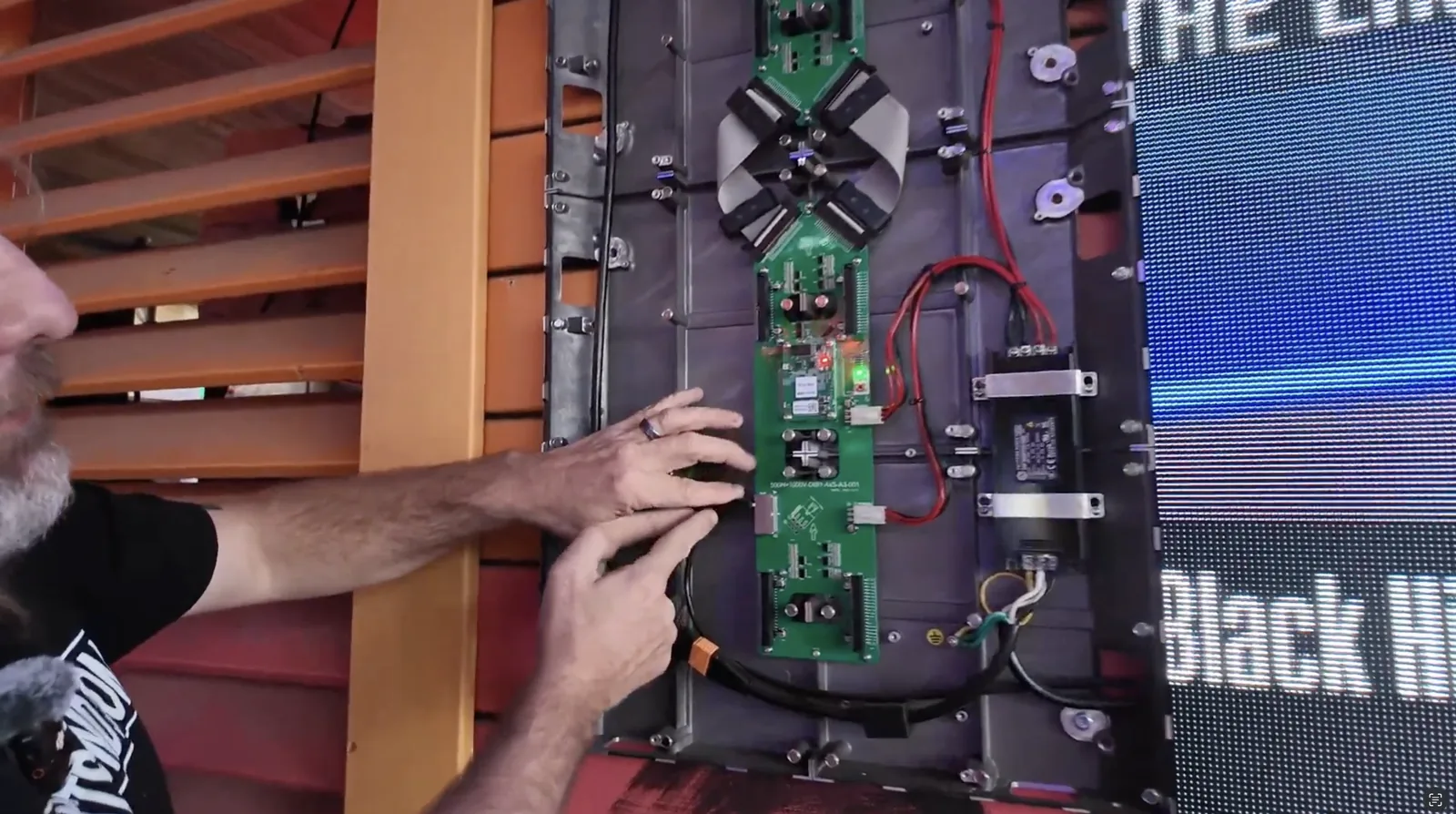

Real install · Austin sportsbar

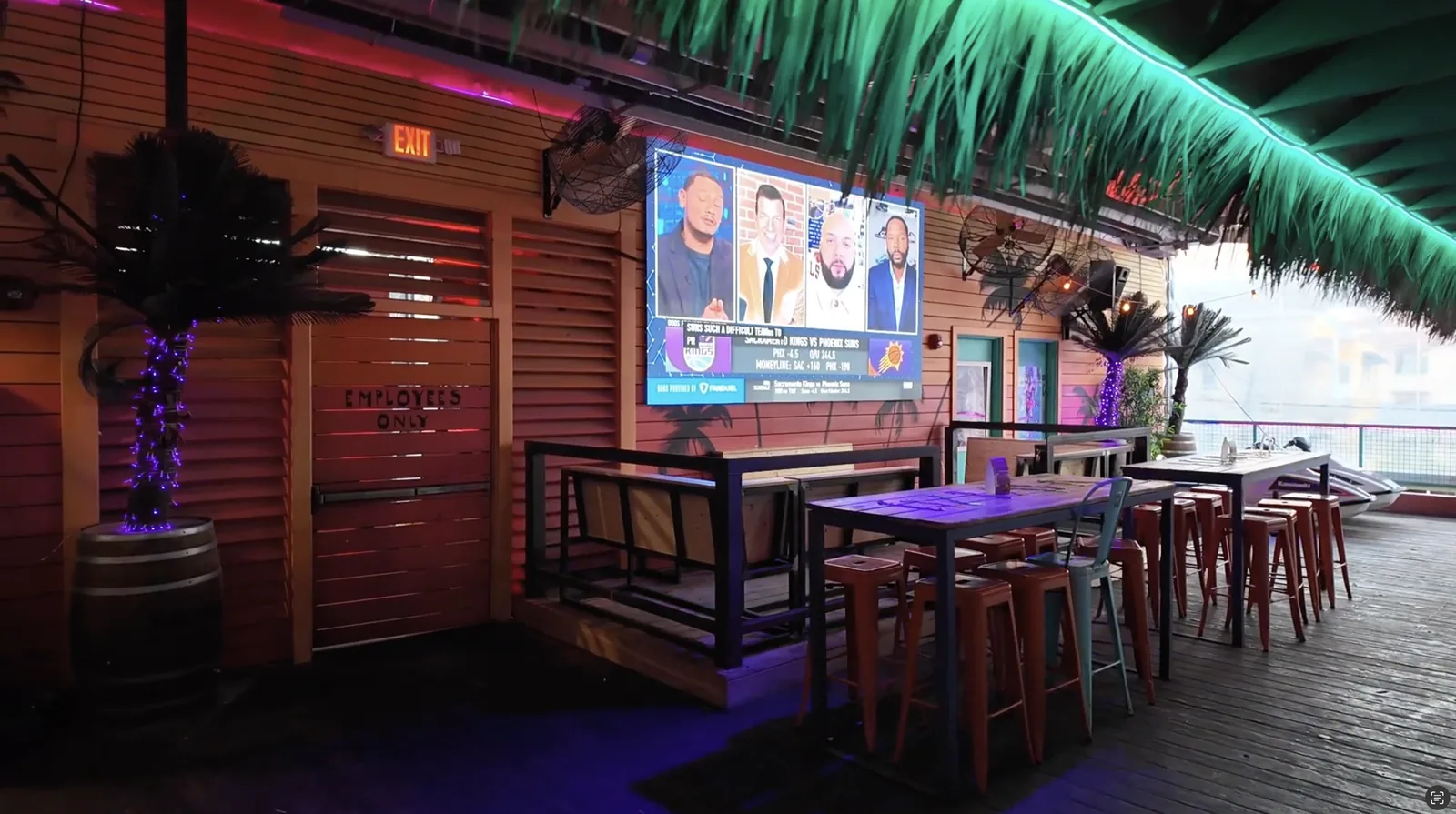

DVS DioPlex HD-3 outdoor LED video wall at an Austin outdoor sportsbar. 3.9 mm pixel pitch sized for 12-foot patio viewing, IP67 weatherized, front and rear serviceable, magnet-secured modules. Lag-bolted to a flat patio wall with internal power and data.
Frequently asked
The questions venue owners and AV integrators ask us about LED video walls. If yours is not on the list, call or send the form below.
An LED video wall is a display built from modular LED panels (cabinets) tiled together into a single image. Unlike consumer TVs, LED video walls scale to any size, run brighter for direct-sun installs, are serviceable panel by panel, and ship in fixed pixel pitches optimized for viewing distance. We are an authorized DVS LED dealer for indoor and outdoor builds.
Pixel pitch is the distance between adjacent LED pixels, measured in millimeters. Smaller pitch means a sharper image at close viewing. A rule of thumb: viewing distance in feet should be about the pixel pitch in millimeters times 3. A 3.9 mm wall reads clean from about 12 feet away. We spec the pitch against your room during the design phase.
Yes. The DVS DioPlex HD-3 we installed at an Austin outdoor sportsbar is IP67 weather rated with built-in water drainage. It handles direct sun, year-round Texas rain, cold, and heat. Outdoor cabinets typically run higher brightness than indoor variants so the image stays readable in direct sunlight.
Hardware lead time is usually 3 to 6 weeks. On-site install for a 12-panel wall like the Austin sportsbar is typically 2 to 4 days including commissioning. The panels lag-bolt directly to a flat wall and connect internally for power and data, so there are no exposed cable runs.
Yes. The DVS DioPlex HD-3 is front and rear serviceable. LED modules push onto the frame and snap secure via magnets, so a tech can swap a module without removing the cabinet from the wall. A bad module is typically a 5-minute swap, not a 4-hour cabinet pull.
Yes. AV integrators are a core customer. We design the wall against your project spec, quote DVS cabinets at integrator pricing, ship to site labeled and ready, and coordinate with your install team during commissioning. We can also handle the install ourselves if your scope does not include LED.
Almost anything rectangular. Each DioPlex HD-3 cabinet is 500 by 1000 mm. The Austin sportsbar build is 12 panels (2 tall by 6 wide). We have specced walls from a single column up to multi-cabinet stadium displays. For non-rectangular or sculptural builds, talk to us about custom integration.
Yes. The video wall is a network appliance like everything else we install. We can integrate it into the FBS Control System so source switching, scene programming, and content scheduling all run from the same surface as your audio and lighting.
We do not list pricing online because cost varies with cabinet count, pixel pitch, indoor vs outdoor, and integration complexity. The Austin sportsbar 12-panel build and a custom 13,000-pixel ceiling installation are very different jobs. Tell us the project, we will get you a quote the same business day.
Yes. We engineered a 13,000-pixel LED ceiling for a 6th Street theme bar with pixel-mapped wall art that interacts with the ceiling. If your project needs something that off-the-shelf cannot deliver, we will design it.
Fullblast Sound is based in San Antonio, Texas. Our install footprint covers San Antonio, Austin, Houston, Dallas, the Texas Hill Country, and nationwide. Case studies in Texas, Kansas City, and New Orleans. AV integrators worked with in multiple states.
Yes. DVS offers indoor LED panels from ViuPlex 0.7 mm COB ultra-fine-pitch micro-LED (the close-viewing flagship) up through their fixed-install indoor catalog: nightclub wraparounds, restaurant feature walls, lobby displays, brand activations, sanctuary IMAG, conference rooms. We spec the right pitch against your viewing distance during design.
