HSD Sound Systems · Point-Source Top

HSD Mantarray 60

Model PS21264

Array-optimized 60-degree point source with exceptional off-axis control.

The Mantarray 60 is a high-output, arrayable point-source loudspeaker built for demanding professional applications. Its nominal 60 x 40-degree dispersion and exceptional off-axis performance deliver precise coverage and seamless integration in side-by-side array configurations. Integrated fly points and a compact 100 lb build make it equally at home flown on tour or installed in a venue. Hand-built by Hennessey Sound Design in Massachusetts, and backed by a 5-year limited warranty.

$6,500 retail

Built to order. Quote includes freight, system design, and current lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

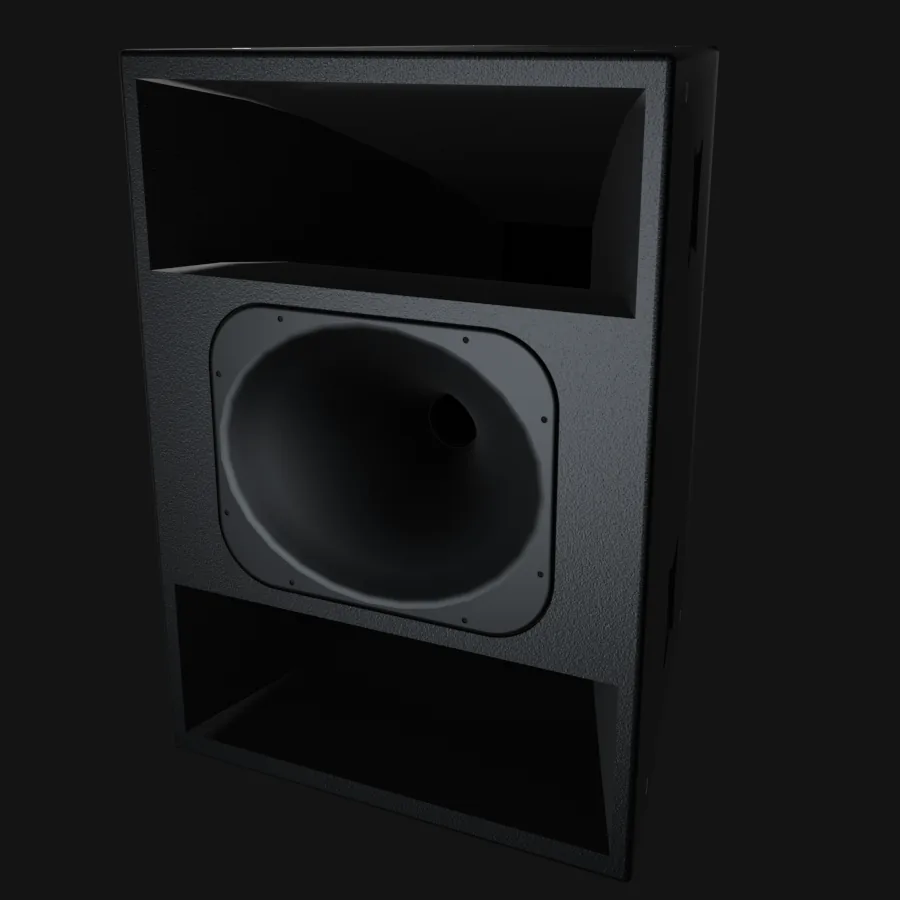

HSD Sound Systems Mantarray 60 point-source top by Hennessey Sound Design

Amplification

Passive cabinet, amplification required
The Mantarray 60 is bi-amped: LF (800 W) and HF (110 W) sections at 8 ohms each. One four-channel HSD KP Series amp runs a pair of Mantarrays with FIR presets.
2 amp channelsper cabinet, 8Ω sections
Coverage
60×40exceptional off-axis control
Drivers
12″+1.4″point source, arrayable
Sensitivity
111 dBHF (1W/1m); LF 108 dB
Weight
100 lbs22″ W × 30.5″ H × 24″ D

Full specifications

HSD Mantarray 60 (PS21264) specs

Factory specifications from Hennessey Sound Design. Download the cut sheet for drawings and driver details.

Frequency Response200 Hz - 20 kHz (-3 dB); 100 Hz - 20 kHz (-10 dB)
SensitivityHF 111 dB / LF 108 dB (1W/1m)
Drivers1 x 12" woofer, 1 x 1.4" compression driver
Power HandlingLF 800 W / HF 110 W continuous (1,600 / 220 W program)
Impedance8 ohms nominal per section
Coverage60 x 40 degrees (H x V)
Dimensions22" W x 30.5" H x 24" D
Weight100 lbs
Connectors2 x NL4
HSD Mantarray 60 cut sheet (PDF)

Why buy from Fullblast

An HSD system is a build, not a box. We manage the whole thing.

01

Authorized HSD dealer

Fullblast Sound is one of only three authorized HSD Sound Systems dealers in the United States. Factory pricing, factory support, and a direct line to the Massachusetts shop on every order.

02

Real dealer support

We spec the system against your room and application, handle freight and logistics, and stay on call after delivery. Talk to us before you order and we will get the design right the first time.

03

Nationwide freight

Every HSD cabinet ships crated freight from the factory. We quote and coordinate delivery to your dock or venue anywhere in the country as part of the system price.

04

Financing available

Spread an HSD system across payments instead of a single check. See financing options or ask for terms with your quote.

Get a real quote

Send a system spec, not a price shopping number

Tell us the room, the audience size, and what you run today. We come back with the right HSD build, amplification, freight, and current factory lead time. One short form.

Request Quote Or call 210.489.0492

Same business day response.

Buyer research

Questions buyers ask about the Mantarray 60

Common pre-purchase questions on the HSD Mantarray 60.

Q1

What makes the Mantarray 60 array-friendly?

Its nominal 60 × 40-degree pattern holds up off-axis, so cabinets splayed side-by-side sum cleanly instead of combing at the seams. HSD's 2-way and 3-way splay boards ($1,700 / $2,200) set precise horizontal angles for two- and three-wide arrays, see the accessories table on our HSD hub page.

Q2

What amplifier drives the Mantarray 60?

Two channels per cabinet: LF 800 W and HF 110 W continuous, 8 ohms per section. A four-channel HSD KP Series amplifier runs two Mantarrays, a two-wide array per amp, with HSD FIR presets loaded per channel.

Q3

How low does it play, and what goes underneath?

Response is 200 Hz to 20 kHz (-3 dB), reaching 100 Hz at -10 dB, it is engineered as the top of a horn-loaded stack, not a standalone box. The classic HSD deployment puts the Mantarray over a Cannon 18″ bandpass horn (65–220 Hz) over BattleAxe subs for a full-spectrum, all-horn wall.

Q4

Mantarray 60 or Mantarray 90?

Pattern and reach. The 60 is the array building block: tighter 60 × 40 coverage and slightly hotter 111 dB HF sensitivity for multi-cabinet fronts and longer throw. The Mantarray 90 covers 90 × 40 and extends alone down to 90 Hz (-3 dB) for wider rooms and simpler rigs. Same 12″ + 1.4″ recipe, call us for Mantarray 90 pricing.

Q5

Is there a variant with an 18 Sound driver?

Yes, HSD builds a Mantarray 60 variant (model PS21294LF) with an 18 Sound low-frequency driver at the same $6,500 retail. It is listed in the additional products table on our HSD hub page; ask us about driver availability when you order.

System design

This pairs well with

The Mantarray 60 is the top block of HSD's classic all-horn stack.

Mid-bass layer

Cannon 18″ bandpass horn

Purpose-built to ride on FLH sub stacks with a 65–220 Hz passband. The bridge between Mantarray tops and the subs.

Low end

BattleAxe 21″ FLH

The renowned HSD sub with usable output to 25 Hz. Mantarray + Cannon + BattleAxe is the signature HSD wall.

Amplification

HSD KP Series DSP amps

Bi-amped: two Mantarrays per 4-channel KP amp with FIR presets and per-channel limiting.
