BASSBOSS DJ18s MK3

All about the DJ18s MK3 2500 Watts

DJ18s MK3 Technical Overview

The DJ18-MK3 is a premium-quality subwoofer which delivers deep bass at levels far higher than would be expected from its size. Suitable for the truly bass-insatiable who focus on modern music with frequencies well below the usual 50-100Hz range, this compact sub weighs only 110 lbs and delivers output down to 27Hz (-3dB).

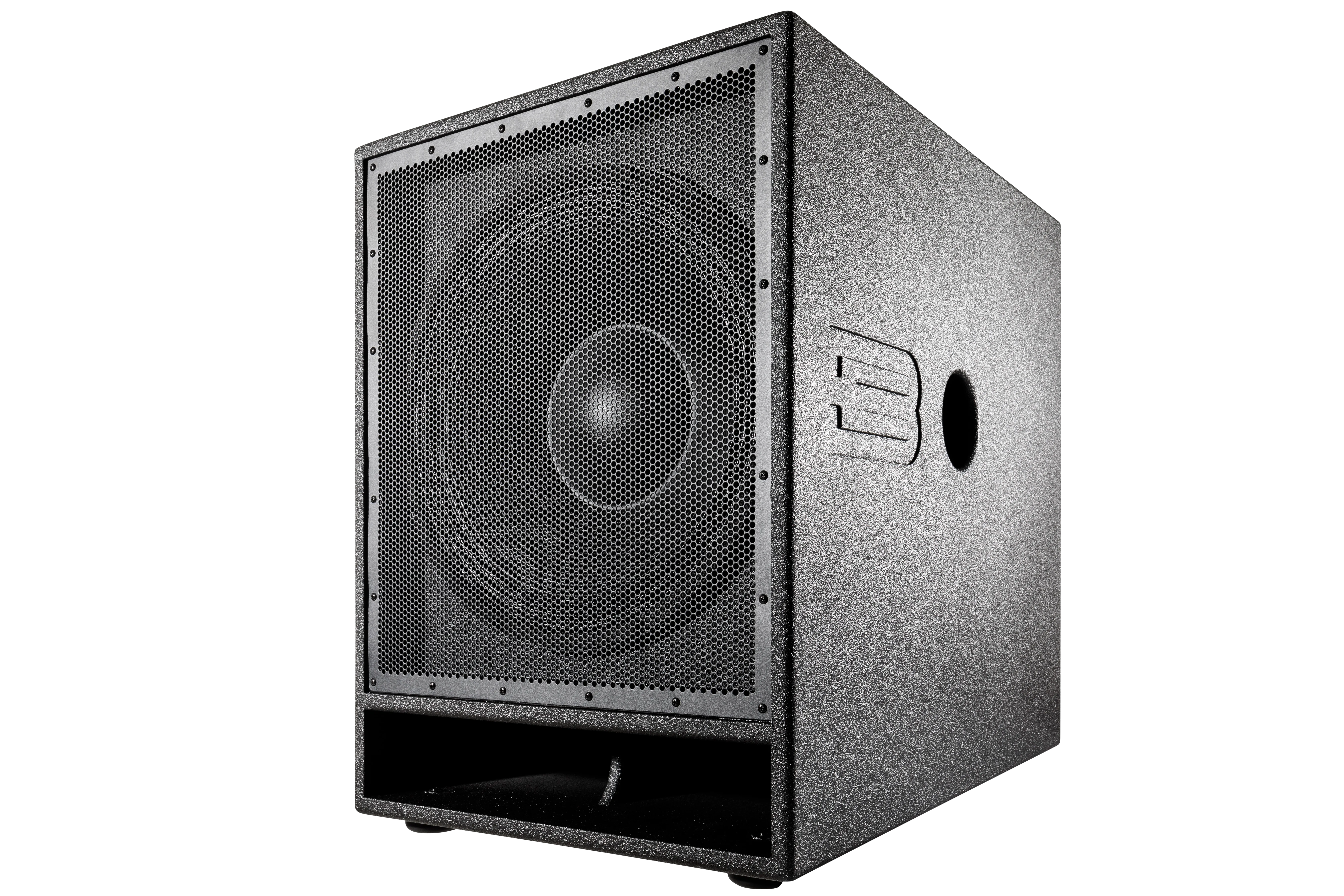

The DJ18-MK3 is a single 18-inch direct-radiating subwoofer featuring a long-excursion woofer loaded into a vented enclosure that is optimally tuned to deliver flat frequency response to very low frequencies with high sensitivity. The cabinet was designed to minimize mass and maximize efficiency. The point is to do less heavy lifting and deliver more heavy bass.

The DJ18-MK3 features a 2500W amplifier with an auto-sensing, globally compatible power supply that can run on mains supplies anywhere between 90 and 250 Volts. Full output power is available on anything over 110V. The amplifier’s high peak-output voltage provides intense high SPL hits, while its sustained output is unparalleled in its ability to deliver those “liquid” lows.

The amplifier is passively cooled via its external heat-sink and by woofer-generated air-flow through the port. When necessary, two blower-fans are engaged to provide additional forced-air cooling capacity in more extreme conditions.

New to the MK3 are Neutrik powerCON True 1 TOP (Total Outdoor Protection) waterproof mains connectors. Waterproof mains connectors, along with a totally isolated input connection section and cones that are waterproofed, make the MK3 series the powered loudspeakers that can be used outdoors without fear of what the weather will bring, or used indoors without fear of what the partiers fling.

Electrical power is converted into the much more desirable acoustical power by a robust, neodymium motor, 18-inch woofer with a massive 4.5-inch (115mm) copper-wound voice coil. Neodymium magnets are lighter and their higher intensity provides higher efficiency, so the result is a lighter and louder cabinet than those with ferrite drivers.

The MK3 features an all-new DSP. The comprehensive suite of processing includes high-pass and low-pass filters as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible, including thermal, excursion and clipping. The five levels of protection actively prevent overheating of the voice coil, minimize long-term thermal compression, and limit excursion. Because they operate in 5 different modes, the limiters are sophisticated enough to have a largely unnoticeable effect on the transient response, and so allow the subwoofer to deliver peak output safely.

The new DSP features an Ethernet interface. This can be used to control the cabinets from a computer or to load software or firmware updates.

Within the ControlBASS software, multiple cabinets can be grouped together, allowing them to respond to commands simultaneously. This permits the levels of groups of loudspeakers to be adjusted together and yet independently from the levels of other groups of loudspeakers. In addition to individual and grouped level controls, presets can be loaded and signal levels and temperatures can be monitored. Each cabinet includes a two-port switch, so multiple cabinets can be chained on the same data cable.

The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch of a button with no need for a connected computer. The eight directly accessible presets are compatible with all the presets in the MK3 Top Boxes and are also compatible with previous generation tops and subs.

Specifications

Acoustical

Loudspeaker Description: Subwoofer, single 18” powered and processed
Frequency Response (±3 dB): 27 - 100 Hz (Preset dependent)
Maximum Measured Output: 129 dB 1m (half-space)
Max calculated SPL (Peak): 132 dB * 1m (half-space)
Nominal Dispersion (H° x V°): 360 x 360 – Cardioid Mode Available with Multiple Boxes

Electrical

Amplification: 2500 Watts Class D
Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets.
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 4.6A (nominal); 240V 2.3A (nominal)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M (Direct pass-through, unprocessed)
LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: Direct radiating, vented enclosure tuned for high sensitivity at low frequencies
Transducer: 1 x 18 in. diameter (457mm) neodymium motor woofer with 4.5 in. (115mm) voice coil
Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket. 4 rubber feet. 16 T-nuts and bolts for mounting optional casters.
Dimensions (HxWxD): 27.5 in. x 20.5 in. x 29.5 in. (28.75 in. high with feet)
Net Weight: 110 lbs. (50 kg)
Shipping Weight: 125 lbs. (57 kg)
Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black.
Grille: Perforated, powder-coated steel
Pole Sockets: 1 (35 mm)
Handles: 2 Integrated Handles
Feet: 4 rubber feet
Caster Mounts: Attachment points and hardware for four casters are provided on back of cabinet

Optional

Cover: Heavy-duty padded nylon transport cover
Casters: Locking 4” (100mm) swivel casters kit, 4 pieces
What’s Included: Loudspeaker, 15’ (5m) Power Cable, Manual, Warranty Card
