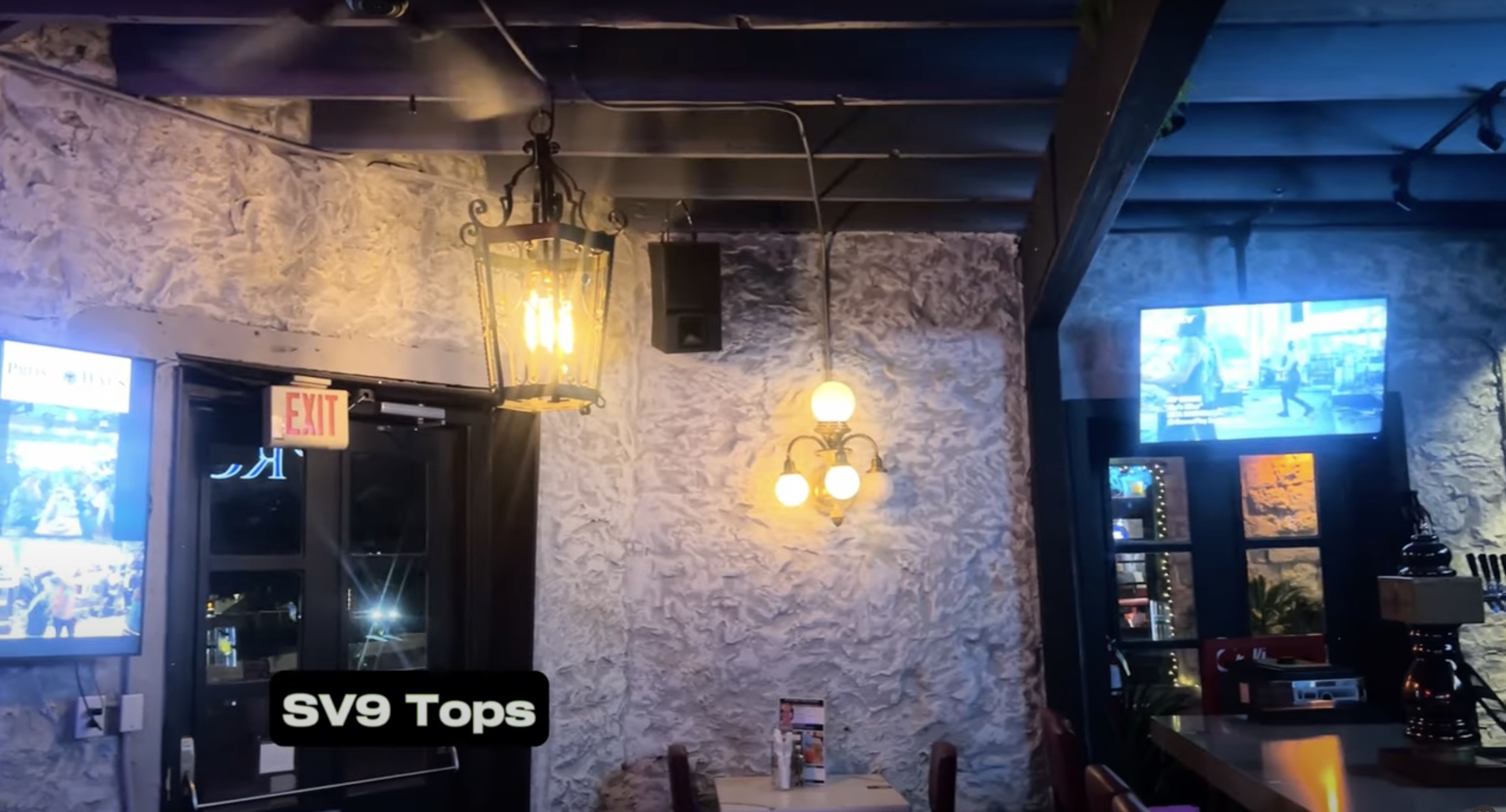

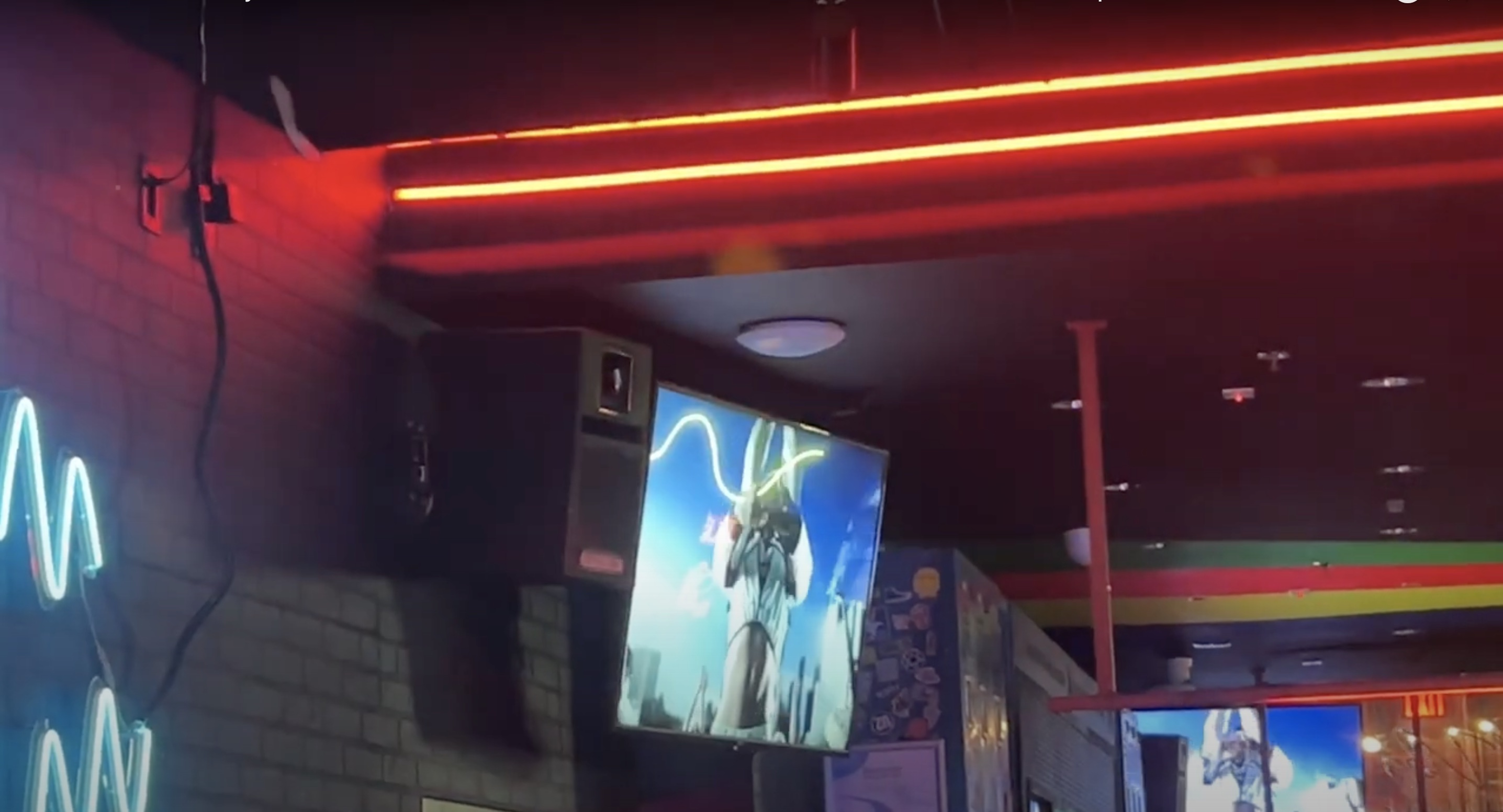

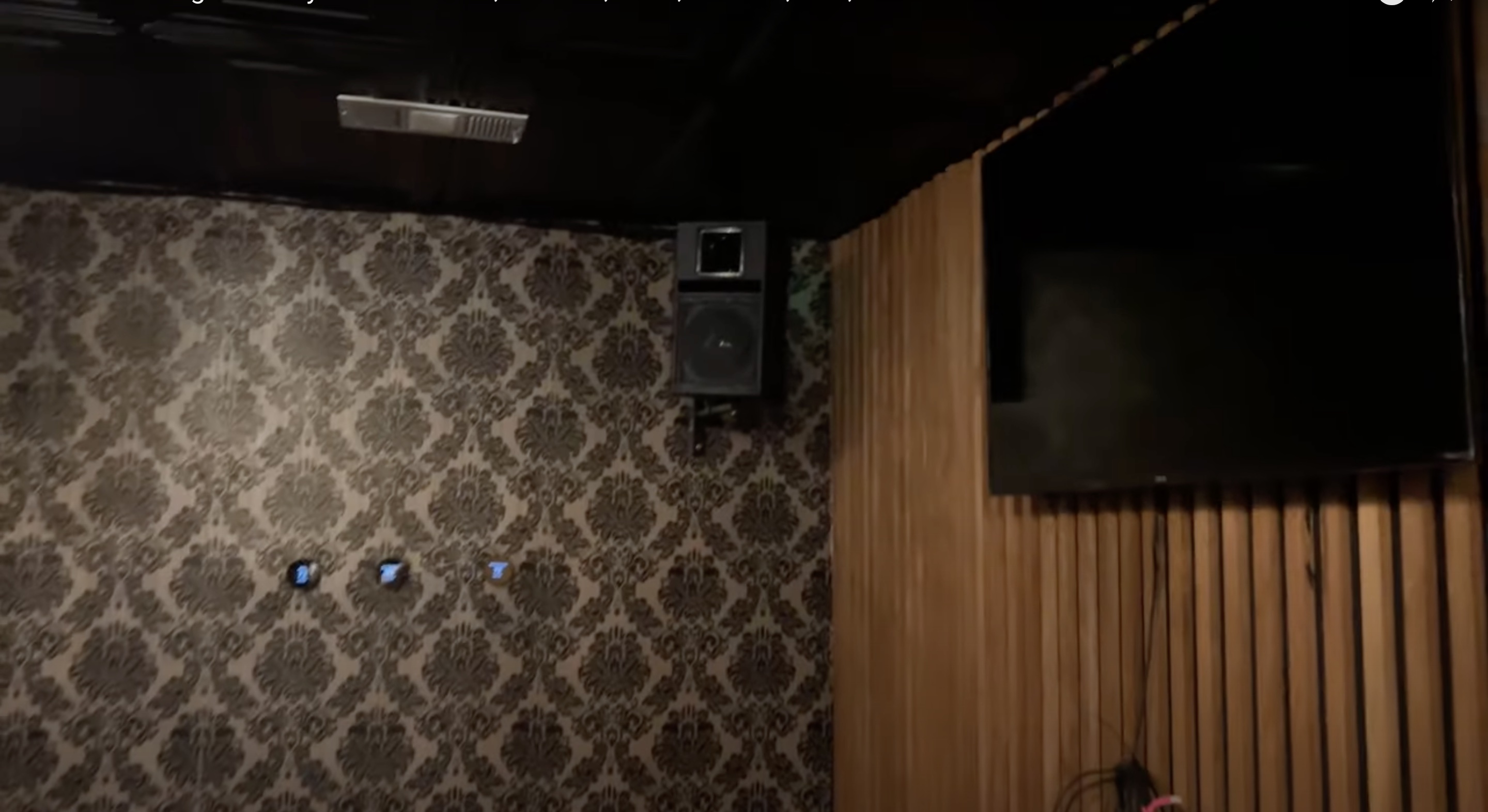

Audio System for Restaurants & Bars: BASSBOSS DiaMons and VS9s Tops with SSP218 and BB15 Subs

SV9 MK3 Technical Overview

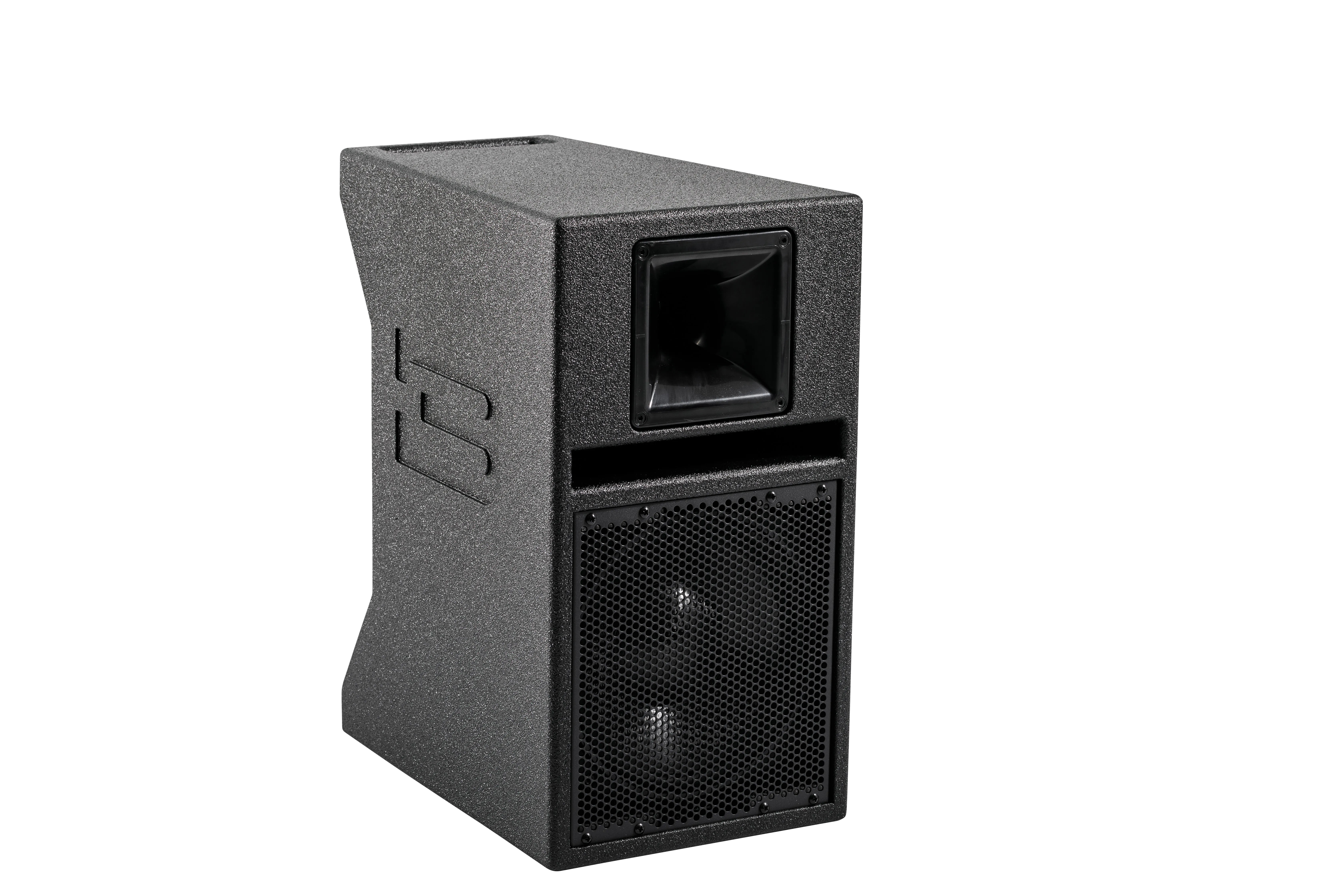

The SV9-MK3 is a studio-reference quality monitor that can venture outside the studio thanks to a rugged finish, handles, grilles and a substantial amount of power. The result is a very compact and portable system for those who demand premium quality and impressive output without oversized, heavy and obtrusive cabinets.

The compact, high fidelity and high output SV9-MK3 continues the BASSBOSS tradition of delivering remarkable performance and outstanding sound quality. In terms of output SPL and frequency response, the SV9-MK3 compares to much larger loudspeakers. Such performance from a much smaller enclosure is made possible by making decidedly different design and component choices than competitors.

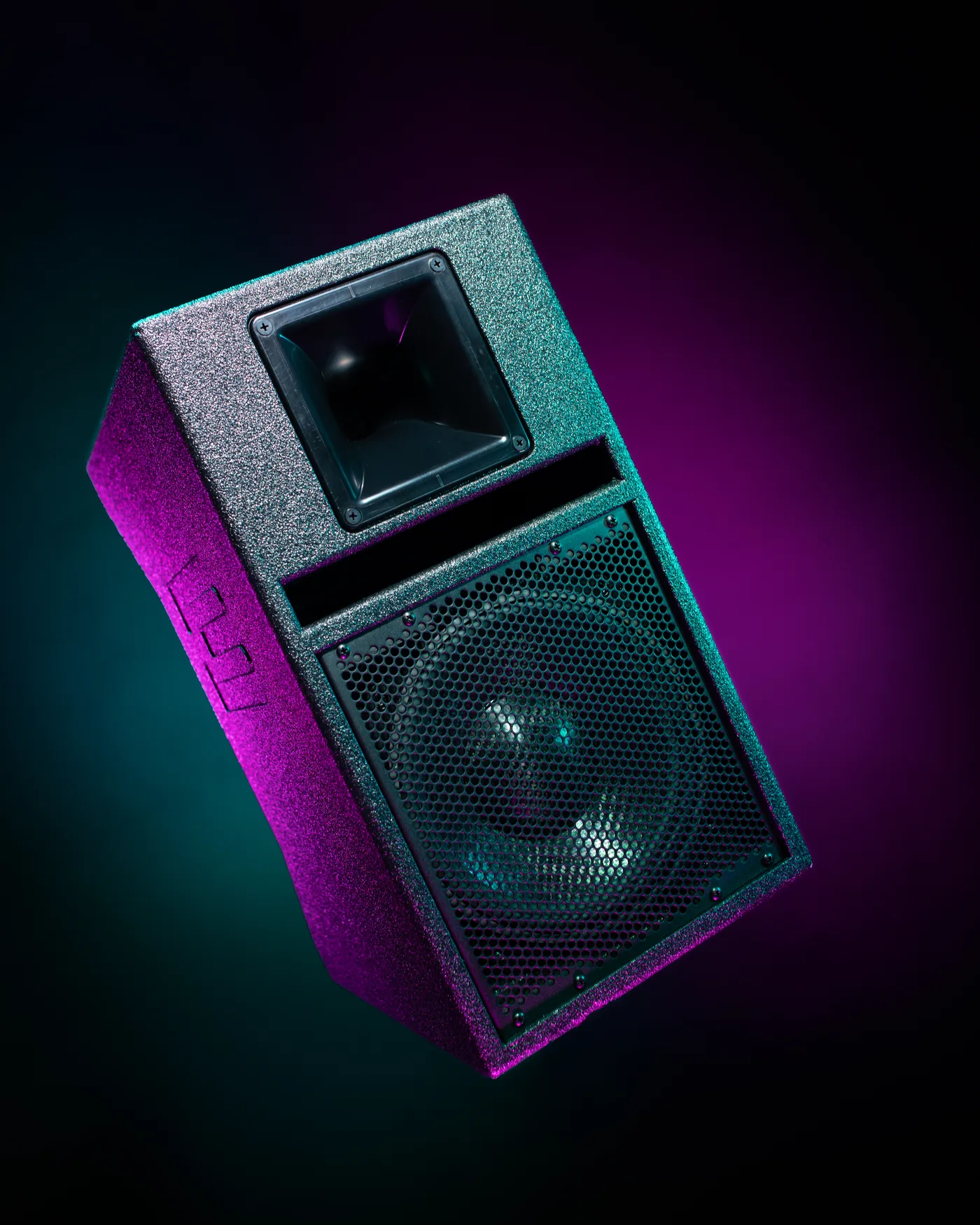

The Birch plywood enclosure is strong and solid while remaining easily portable. The 9” woofer features a large voice coil, providing high power-handling, and a rubber surround for extended low-frequency response. The port has a large area to keep air velocity low, and its exit is clear of the grille to ensure minimal air-flow noise.

The low and midrange frequencies are delivered by a custom developed carbon-fiber cone, 9” Neodymium LF driver. The 2.5” voice-coil offers high power handling and provides large displacement for increased LF output.

The ultra-light carbon-fiber cone provides high sensitivity, with its rigidity contributing detailed resolution. The high frequencies are delivered by a 1.4” voice-coil polyester diaphragm compression driver through a 1” throat horn with a 90 x 60 degree coverage pattern. The polyester diaphragm provides smooth response without the ringing and resulting harshness that can characterize metal diaphragms. The horn is deliberately placed clear of the grille and flush with the front of the cabinet in order to avoid reflections that would tend to blur imaging or otherwise interfere with smooth high-frequency response.

The amplifier offers abundant headroom. The proprietary BASSBOSS processing ensures exceptional sound quality and reliability. The cabinet construction, design, and premium components all contribute to the rich, smooth, sound.

The SV9-MK3 is suitable for use as a studio monitor thanks to its flat frequency response and premium quality, highfidelity electronics. Its ultra-low noise CODECS, 96kHz sampling rate processor and high-resolution amplification are on par with the finest studio monitors in the industry.

What sets it apart from most compact monitors is the power it provides. The amplifier power, along with the processing power, allow it to be used at higher levels than you would dare with an ordinary studio monitor. Now you can take your studio-quality sound with you when you leave the studio.

The amplifier features a Class D SMPS with PFC, providing two channels, 900W LF and 300W HF. Eight on-board presets allow for a variety of configurations at the touch of a button, and LAN connectivity allows access to virtually unlimited preset combinations. On-board presets provide a variety of high-pass filters to suit full-range operation through a variety of settings that maximize SPL when used with a subwoofer

With an enclosure that is just 18” x 10” x 15” and a mere 27. pounds smaller events can be covered with ease. The Birch wood cabinet features integrated handles, a 35mm steel pole socket, and is finished in durable, high-pressure polyurea coating.

The new DSP features an Ethernet interface. This can be used to control the cabinets from a computer or to load the ControlBASS software settings updates. The Ethernet connectivity in conjunction with the DSP board allows signal to be sent via Milan AVB. Future settings updates will provide access to this feature.

Within the software, multiple cabinets can be grouped together, allowing them to respond to commands simultaneously. This permits the levels of groups of loudspeakers to be adjusted together, and yet independently from the levels of other groups of loudspeakers. In addition to individual and grouped level controls, presets can be loaded and signal levels and temperatures can be monitored. Each cabinet includes a two-port switch, so multiple cabinets can be chained on the same data cable.

The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch of a button with no need for a connected computer. The eight directly accessible presets are compatible with all the presets in the MK3 Top Boxes and are also compatible with previous generation tops and subs.

BASSBOSS loudspeakers are protected for safe, high-power operation. Optimized cabinet design, premium quality drivers, power-matched amplification and comprehensive processing ensure that no matter the demand, they keep their cool, keep their character and keep on working.

Specifications

Acoustical

Loudspeaker Description: 2-way active, Single 9” Self Powered, Vented, Direct-radiating Full-range
Frequency Response (±3 dB): 50 – 19,000Hz
Maximum Sustained Output: 118 dB 1m (full-space)
Max SPL (Peak): 121 dB 1m (full-space)
Nominal Dispersion (H° x V°): 90 x 60 (Rotatable)

Electrical

Amplification: 1200 Watts Class D, 2 Channel
Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: ge 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 1.4A (nominal); 240V 0.7A (nominal)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M pass-through only
LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: 2-way full-range/mid-high. Direct radiating vented LF section, horn-loaded HF section
Transducer (Low Frequency): 1 x 9 in. diameter (220mm) neodymium motor woofer with 2.5 in. (64mm) copper winding voice coil and carbon-fiber cone
Transducer (High Frequency): 1.5 in. (38mm) diaphragm compression driver on 1 in. (25mm) throat 90 x 60 degree constant directivity horn
Cabinet Construction: CNC machined 15mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket
Dimensions (HxWxD): 18 in. x 10 in. (7 in. rear) x 15 in. (45.7cm x 25.4 cm [17.78 cm rear] x 38.1 cm)
Net Weight: 27.5 lbs (12.8 kg)
Shipping WeightL 31 lbs (14 kg)
Exterior Finish: High-pressure, bonded polyurea coating, waterproof, textured black
Grille: Perforated, powder-coated steel

Optional

Cover/Carrier: Heavy-duty padded nylon transport cover
What’s Included: Loudspeaker, 15’ (5m) Power Cable, Manual, Warranty Card
