MOBO MB-7D Double-Sided LED Trailer: Two 12.6' x 6.3' Screens

Name: MOBO MB-7D Double-Sided LED Screen Trailer
Brand: MOBO

3.91 mm pitch · 7,500 nits · independent content per side

Two 12.6 by 6.3 foot LED faces ride back to back on one 4,600 pound trailer, covering both directions of traffic from a single parking spot.

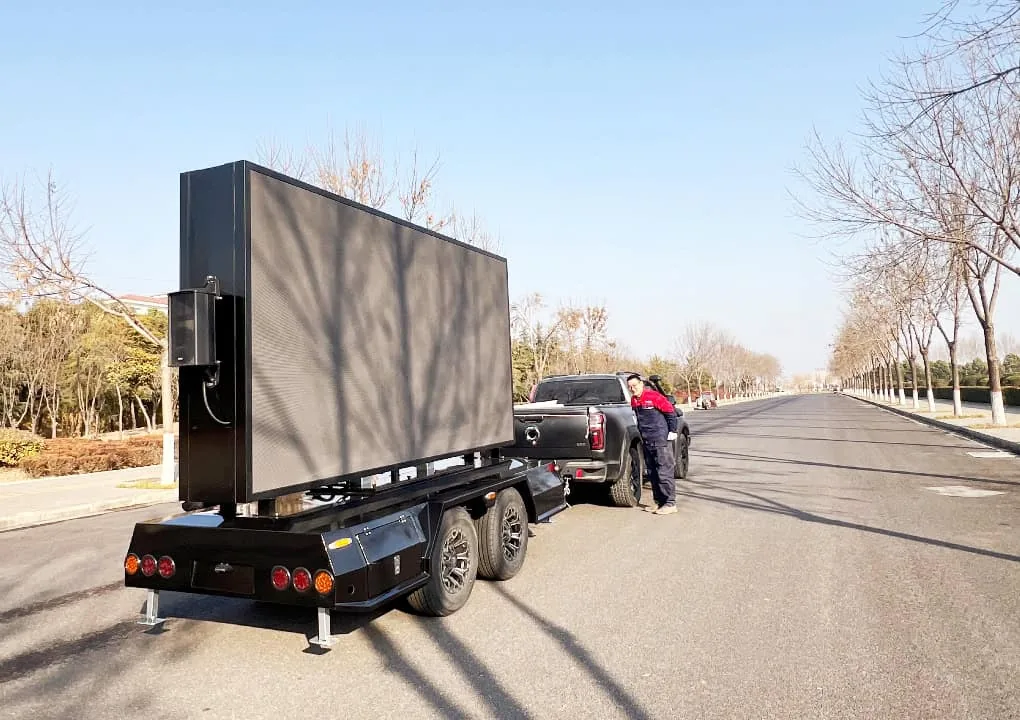

The MB-7D scales the double-sided MOBO format up to two 12.6 by 6.3 foot outdoor screens, each built from 7,500 nit panels that stay readable in direct sunlight and dim automatically after dark. The NovaStar TB-40 media platform drives both faces with the same clip or two completely different programs, so an advertising operator can sell each side of the trailer separately. The hydraulic mast raises the screen top to 13.2 feet, the trailer transports at 16.9 by 5.91 by 9.91 feet, and one operator has it running in about 10 minutes.

Call for pricing built to order

Built to order. Quote includes delivery, configuration, and current factory lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

MOBO MB-7D double-sided LED screen trailer product view showing the twin back-to-back screens

Specifications

MOBO MB-7D Factory Specifications

Figures from current MOBO factory documentation. Confirm final build options with your quote.

LED screens	Two faces, 12.6' x 6.3' each (3840 x 1920 mm per side), mounted back to back
Pixel pitch	3.91 mm standard; 2 mm to 5 mm available
Brightness	7,500 nits with automatic ambient dimming
Refresh rate	7,680 Hz or higher
Protection	IP68 front, IP66 rear; operating range -4°F to 175°F
Media control	NovaStar TB-40 player; synchronous or asynchronous playback; same or different content per side; HDMI 1.4 input up to 1080p60
Audio	Dual waterproof speakers with 260 W amplifier

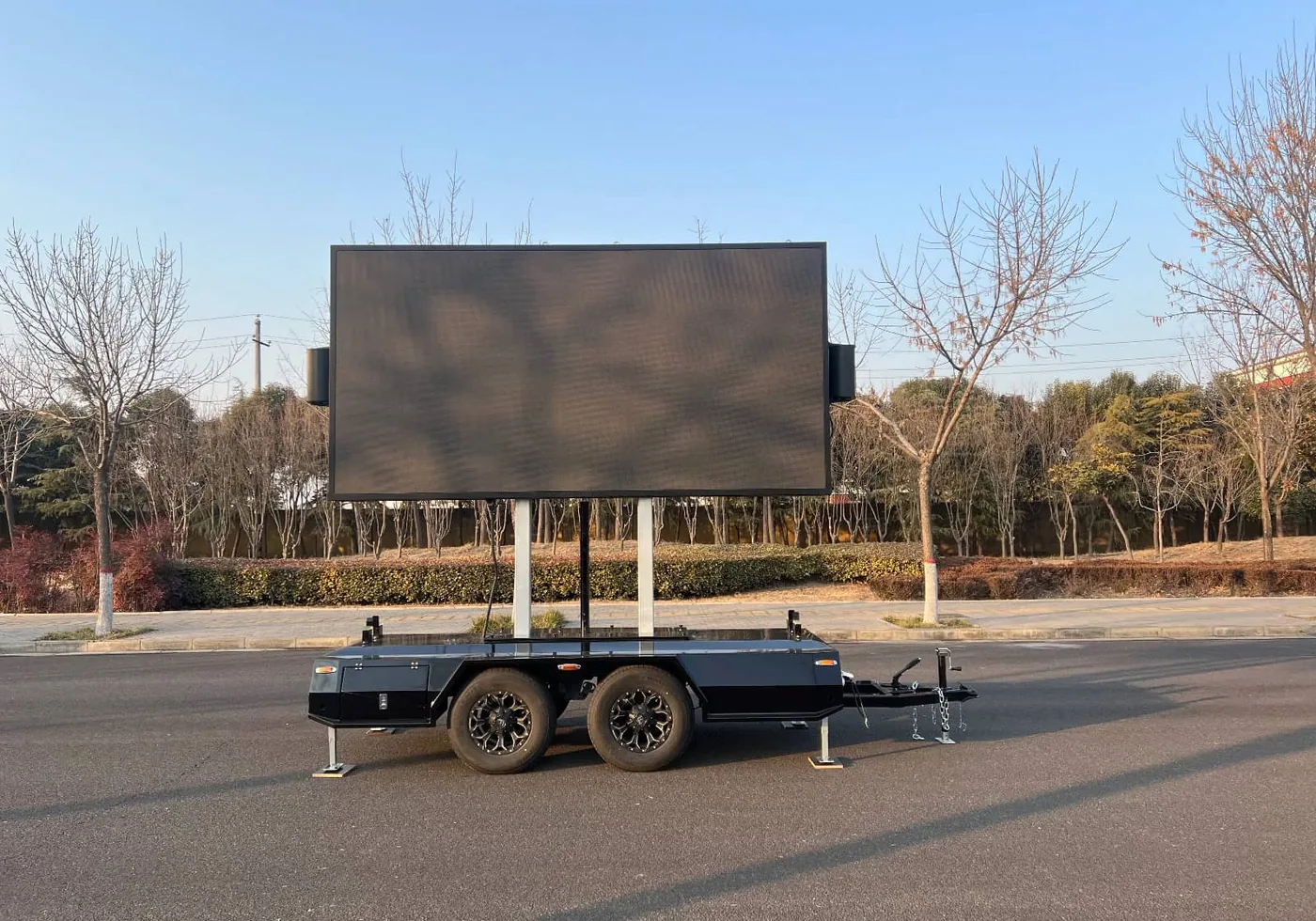

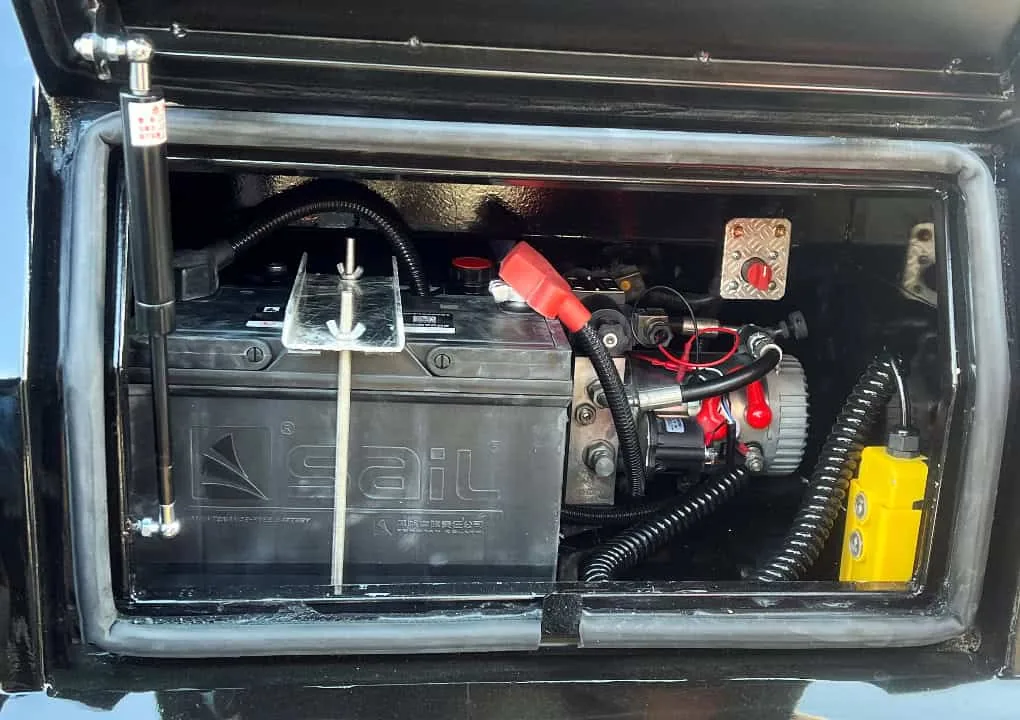

Hydraulic system	1.5 kW power unit, wired control, overheat protection; screen top lifts to 13.2 ft, trim height 6.9 ft
Trailer	16.9' x 5.91' x 9.91' in transport, 13.2 ft raised; 4,600 lbs; tandem axles, LT265/70R16 tires, 2-5/16" ball coupler
Power	Two 240V, 30A twist-lock inlets; about 4,000 W average screen draw, 12,000 W maximum; optional super-silent inverter generator and LiFePO4 battery
Wind rating	45 mph deployed
Compliance and warranty	US DOT compliant chassis; 10-year screen warranty, 5-year chassis warranty
Setup	About 10 minutes with one operator

Dealer notes

Where the MB-7D Fits

Advertising operators are the natural MB-7D buyers. The faces are half again larger than the MB-5D, which is the difference between a screen that reads on a city street and a screen that reads across a highway frontage or a stadium parking lot. Sell each side as separate inventory on a route, or park it at an event and cover two viewing areas from one power drop.

The panels carry IP68 front and IP66 rear protection and operate from -4 to 175 degrees Fahrenheit, so the trailer works a full outdoor season. Power comes from two 240V, 30A twist-lock connections, with average draw around 4,000 watts, and MOBO offers a super-silent inverter generator plus a LiFePO4 battery bank for routes with no shore power at all. Dual waterproof speakers and a 260 watt amplifier are built in.

The chassis complies with US DOT regulations, tows behind a three-quarter-ton pickup at 4,600 pounds, and the deployed mast is rated for 45 mph winds. MOBO backs the screen for 10 years and the chassis for 5. Pricing is built to order, so ask us for current numbers against your configuration before you commit.
