MOBO · Deluxe LED Trailer

MOBO MB-10

Name: MOBO MB-10 LED Screen Trailer
Brand: MOBO
Availability: InStock

13.12' x 8.2' LED screen

The workhorse of the range. Over 100 square feet of screen with an 18-foot lift, on a tandem-axle chassis.

The MB-10 is where MOBO's mid-size platform starts: a 13.12 by 8.2 foot fine-pitch LED screen on a tandem-axle trailer with a 6,150 lb GVWR. The hydraulic system raises the screen top to 18 feet above the ground, folds it 180 degrees for transport, and rotates it a continuous 360 degrees on site. Four waterproof speaker sets and a 360-watt amplifier are built in, and one operator has the whole rig show-ready in about 15 minutes.

From $55,000 market price

Built to order. Quote includes delivery, configuration, and current factory lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

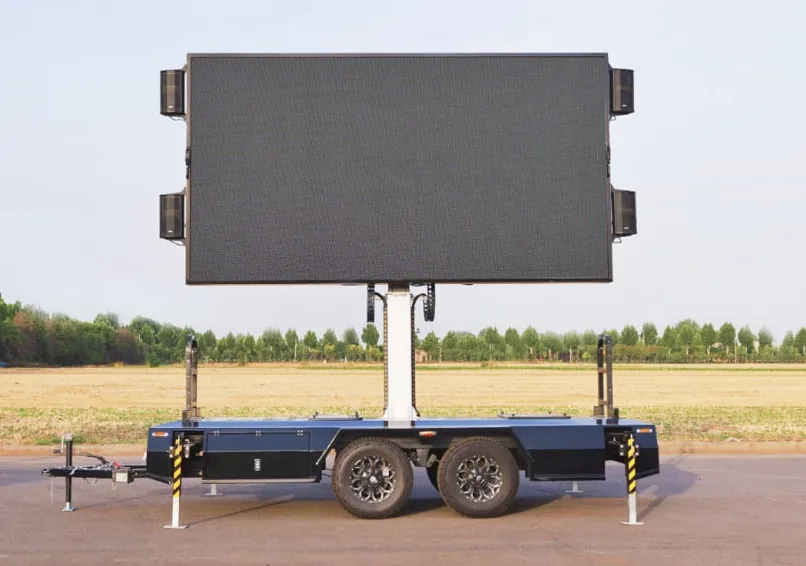

MOBO MB-10 LED screen trailer on a tandem-axle chassis with screen raised

Configurations

MOBO MB-10 configurations and pricing

Current published market pricing from the MOBO US price list. Delivery quoted separately by destination.

Pixel pitch	Brightness	Refresh rate	Market price
3.91 mm	7,500 nits	7,680 Hz	$65,000
3.91 mm	5,500 nits	3,840 Hz	$55,000

Full specifications

MOBO MB-10 factory specifications

From the MOBO factory cut sheet. Download the full document below for drawings and detail views.

Trailer type	Platform trailer, tandem axle
Transport dimensions (with drawbar)	20' L x 6.7' W x 6.95' H
Operating dimensions	23' L x 6.7' W x 18' H
GVWR	6,150 lbs
Tires and rims	LT265/70R16 on 8" x 16" aluminum alloy rims
Brakes	Electric brakes with hand brake and breakaway kit
Coupler	2-5/16" ball coupler
Stabilizers	4 outrigger legs
Wind rating (deployed)	45 mph
Screen dimensions	13.1' W x 8.2' H (4,000 x 2,500 mm)
Pixel pitch	3.91 mm as sold (2.9 and 4.81 mm on request)
Resolution at 3.91 mm	1024 x 640 pixels
Screen cabinet	Die-cast aluminum, about 16.5 lbs per cabinet, IP65 rated
Viewing angle	140 degrees horizontal and vertical

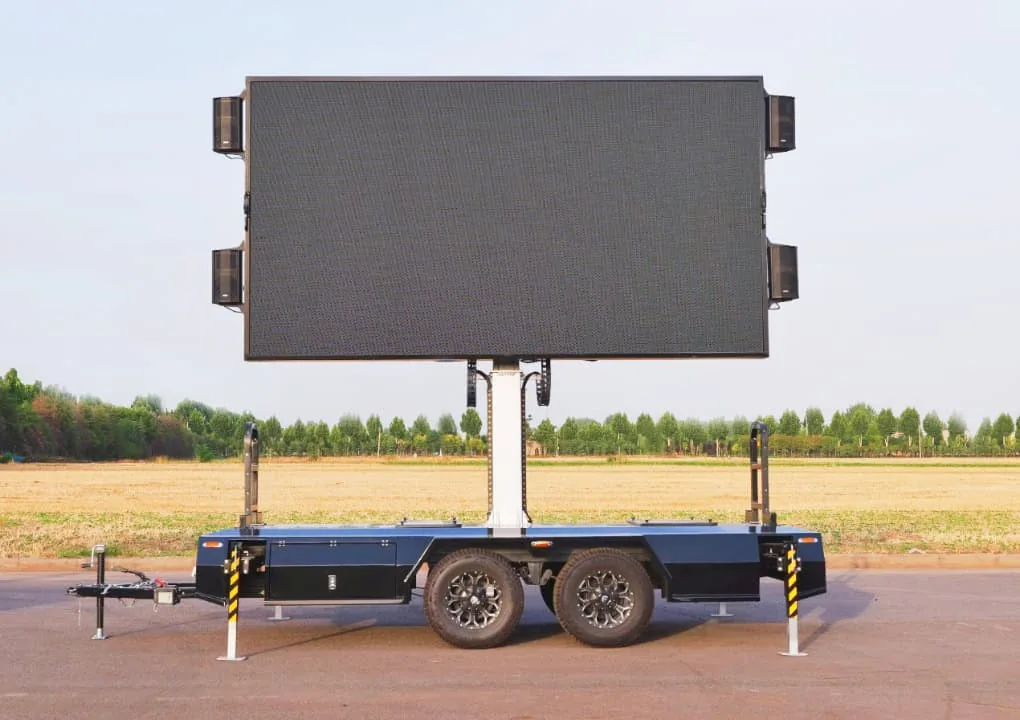

Screen lift	Hydraulic, screen top 18 ft above ground
Screen rotation / folding	360 degrees continuous, 180-degree fold for transport
Hydraulic control	Wireless remote plus wired panel, 1.5 kW pump, aviation hydraulic fluid
Audio	4 waterproof speaker sets (30/60 W) with 360 W amplifier

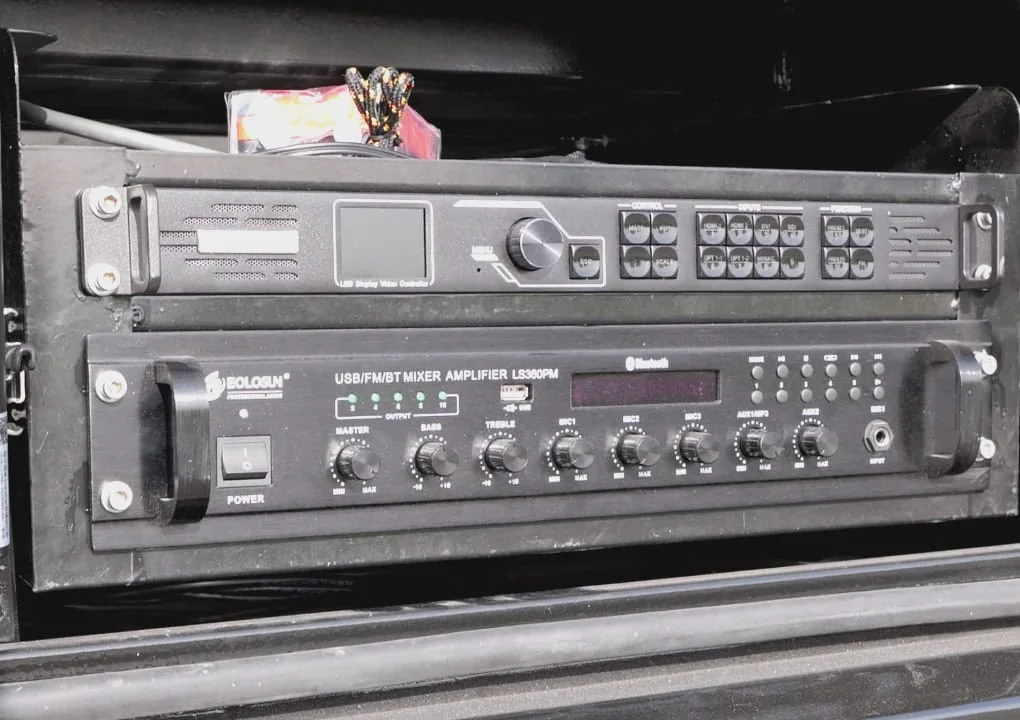

Video processor	NovaStar VX400: DP, HDMI, VGA, DVI, CVBS, SDI inputs
Power	6,400 W max screen draw, about 2,950 W average, plus about 2,100 W equipment, 120V, 50A twist-lock inlet
Working temperature	-4 F to 175 F
Warranty	3 years standard, extendable to 5 years

MOBO MB-10 trailer cut sheet (PDF) MOBO MB-10 line drawing (PDF)

Dealer notes

Where the MB-10 fits

This is the size most rental operators standardize on. At just over 100 square feet, the MB-10 screen holds up for crowds of several hundred at movie nights, watch parties, fairs, school events, and mid-size festivals, while the trailer stays short enough to park in a normal lot and tow behind a three-quarter-ton pickup. The 18-foot lift height is the practical difference from the Lite trailers, the screen clears tents, vendors, and standing crowds.

The screen itself is built from die-cast aluminum cabinets weighing about 16.5 lbs each, IP65 rated, with a NovaStar VX400 video processor handling HDMI, DVI, SDI, VGA, DisplayPort, and CVBS sources. Because the folded screen splits into two faces for transport, you can even run advertising on both sides while the trailer is parked in travel mode.

Two factory configurations are offered at 3.91 mm pitch, the full 7,500 nit, 7,680 Hz screen for maximum sun and camera performance, and a 5,500 nit, 3,840 Hz version that trims 10,000 dollars where evening use dominates. Both are DOT compliant, both run from a 120V, 50A twist-lock connection, and both can take an optional super-silent onboard generator.
