MOBO MB-5

10' x 5' LED screen

The deluxe small trailer. Same screen class as the Lite, dressed in gloss-black bodywork with sound on board.

The MB-5 is the trailer MOBO builds for buyers who want the small footprint but not the stripped-down look. The hand-finished body panels, curved lines, and gloss-black powder coat photograph like a promo vehicle, and the built-in waterproof speakers and amplifier mean the trailer shows up ready to run video with sound, no PA required. The 10 by 5 foot screen rides a hydraulic mast with continuous 360-degree rotation and sets up in about 10 minutes with one operator.

Call for pricing built to order

Configured per build. Quote includes delivery, configuration, and current factory lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

Full specifications

MOBO MB-5 factory specifications

From the MOBO factory cut sheet. Download the full document below for drawings and detail views.

Trailer type	Platform trailer, single axle
Transport dimensions (with drawbar)	14' L x 5.25' W x 8.7' H
GVWR	2,750 lbs
Tires and rims	LT265/70R16 on 8" x 16" aluminum alloy rims
Brakes	Electric brakes with hand brake and breakaway kit
Coupler	2-5/16" ball coupler
Stabilizers	4 outrigger legs
Wind rating (deployed)	45 mph
Finish	Gloss black deluxe bodywork, custom RAL colors available
Screen dimensions	9.45' W x 5.25' H (2,880 x 1,600 mm)
Pixel pitch options	3 mm, 4 mm, or 5 mm
Brightness	5,000 to 5,500 nits standard, 7,500 nits optional
Screen cabinet	Iron, rear access, IP65 rated
Viewing angle	140 degrees horizontal and vertical

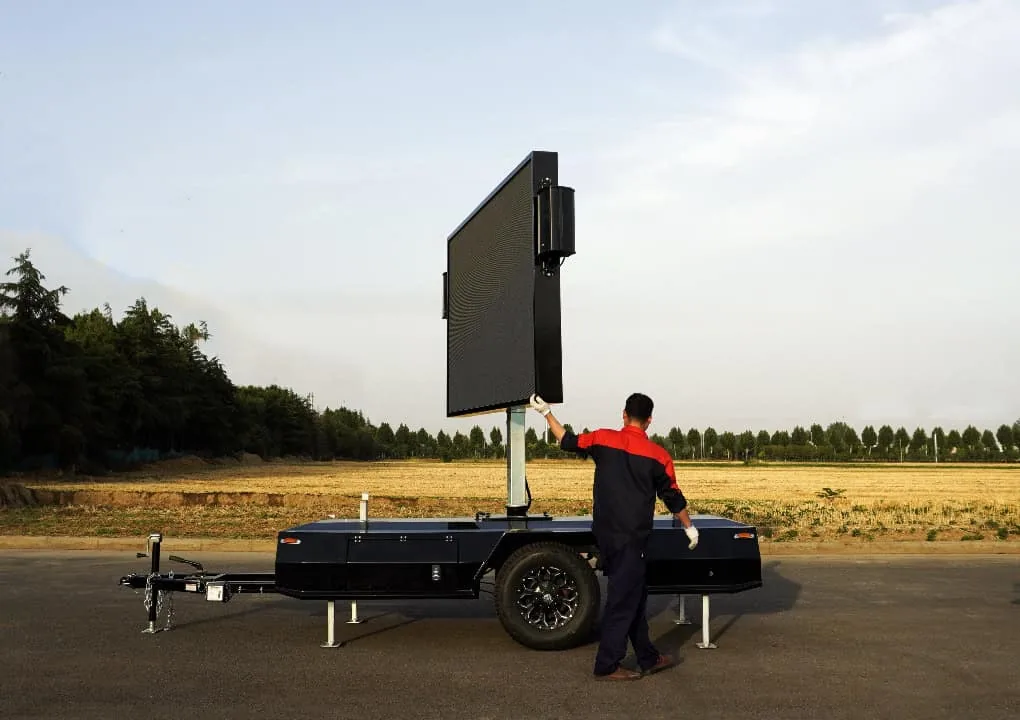

Screen lift	Hydraulic, about 12.1 ft total height raised
Screen rotation	360 degrees continuous
Audio	2 waterproof speaker sets (30/60 W) with onboard amplifier
Controller	NovaStar TB-40, HDMI input up to 1080p60, WiFi and 4G capable
Power	4,000 W max screen draw, about 1,300 W average, 120V, 30A twist-lock inlet
Working temperature	-4 F to 175 F
Warranty	3 years standard, extendable to 5 years

MOBO MB-5 trailer cut sheet (PDF) MOBO MB-5 line drawing (PDF)

Dealer notes

Where the MB-5 fits

Think of the MB-5 as the Lite's better-dressed sibling. The screen size and single-axle towing are in the same class, but the deluxe body, integrated audio, and finish work make it the trailer you send to client-facing jobs, sponsor activations, dealership events, and anywhere the trailer itself is part of the presentation. Event rental companies like it because it shortens the load list, the screen and the sound arrive on the same axle.

The spec sheet below comes straight from the MOBO factory cut sheet: iron IP65 screen cabinets, NovaStar TB-40 control with HDMI input, a 1.5 kW hydraulic pump running aviation-grade fluid, and a 120V, 30A power connection with about 4,000 watts of maximum screen draw. Registration is simple because the chassis is fully DOT compliant with a NHTSA-decodable VIN.

The MB-5 is built to order and its pricing moves with configuration, so it is not on our published price list. Call us at 210-489-0492 or send the quote form and we will price the exact build with delivery to your state.
