MOBO MB-60E Mobile LED Jumbotron: 33' x 20' Screen

Name: MOBO MB-60E Mobile LED Jumbotron Trailer
Brand: MOBO

3.91 mm pitch · 7,500 nits · about 660 sq ft of screen

A 33 by 20 foot LED screen, about 660 square feet, folds out of an enclosed trailer and climbs to 37.8 feet with no truss and no crane.

The MB-60E is the stadium-class trailer in the MOBO line. Its 33 by 20 foot LED wall runs 2560 by 1536 pixels at 3.91 mm pitch and 7,500 nits, driven by a NovaStar VX1000 processor with 3G-SDI, HDMI, and DVI inputs that drop straight into a broadcast truck or camera switcher. Hydraulics fold the screen 180 degrees out of the enclosed body, level the outriggers at one button, and raise the screen top to 37.8 feet. The trailer transports at 39.4 by 8.2 by 13.1 feet and 22,000 pounds on tridem axles, in gooseneck or bumper-pull configuration, and a crew of one sets it up in 30 to 45 minutes.

Call for pricing built to order

Built to order. Quote includes delivery, configuration, and current factory lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

MOBO MB-60E mobile LED jumbotron trailer product render with the 33 by 20 foot screen raised

Specifications

MOBO MB-60E Factory Specifications

Figures from current MOBO factory documentation. Confirm final build options with your quote.

LED screen	33' x 20' (10,000 x 6,000 mm), about 660 sq ft; 2560 x 1536 pixel resolution
Pixel pitch	3.91 mm standard; 2.6 mm to 6.7 mm available
Brightness	7,500 nits; contrast 5000:1 or better; 140° horizontal / 120° vertical viewing angle
Refresh rate	7,680 Hz or higher
Protection	IP68 front, IP66 rear
Video processing	NovaStar VX1000, 6.5 million pixel capacity; 3G-SDI, HDMI 1.4, and DVI inputs; 3.5 mm audio input

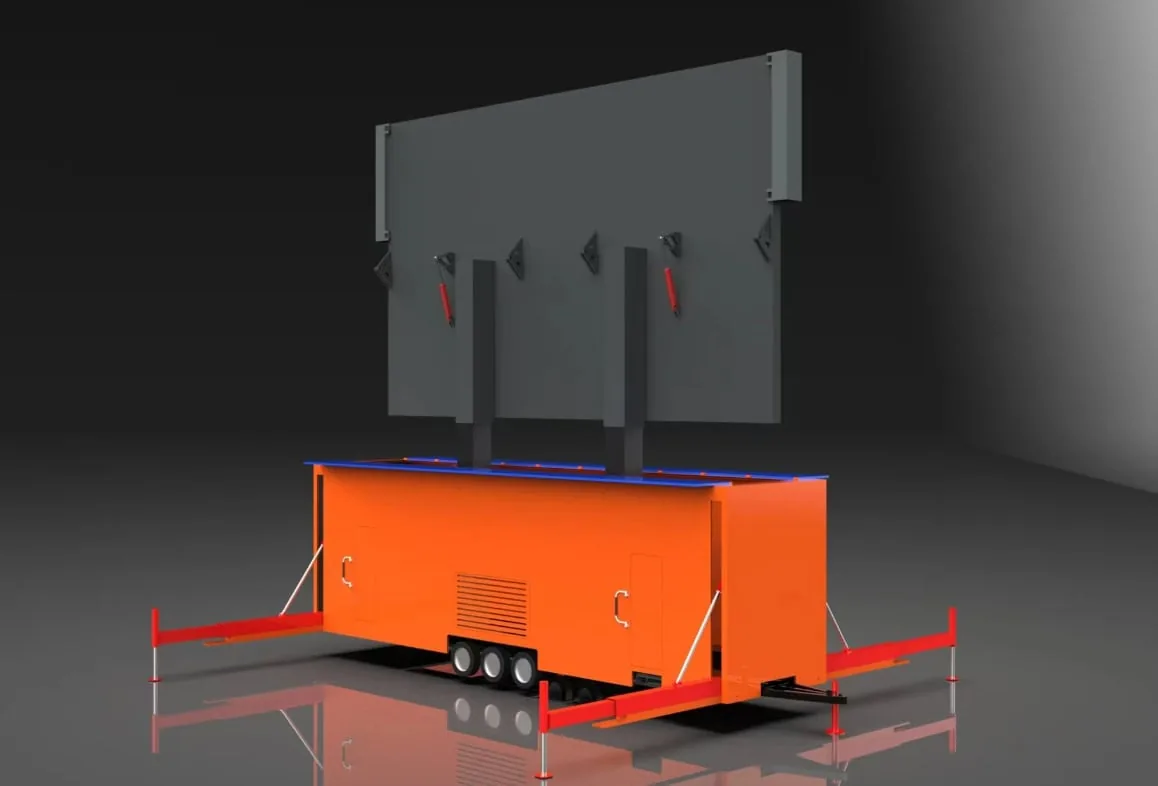

Hydraulic system	3 kW power unit; 180-degree screen fold; screen top to 37.8 ft, trim height 18 ft; one-button leveling outriggers; remote and wired control; overheat protection
Trailer	39.4' x 8.2' x 13.1' in transport; 22,000 lbs; tridem axles with 22,000 lb GVWR; ST215/75 R17.5 tires; gooseneck or 2-5/16" bumper-pull coupler
Power	480V shore power; about 20,000 W average screen draw, 50,000 W maximum; optional 16 to 60 kW super-silent onboard diesel generator; optional LiFePO4 battery
Wind rating	45 mph deployed
Compliance and warranty	US DOT approved chassis; 10-year screen warranty, 5-year chassis warranty
Setup	30 to 45 minutes

Dealer notes

Where the MB-60E Fits

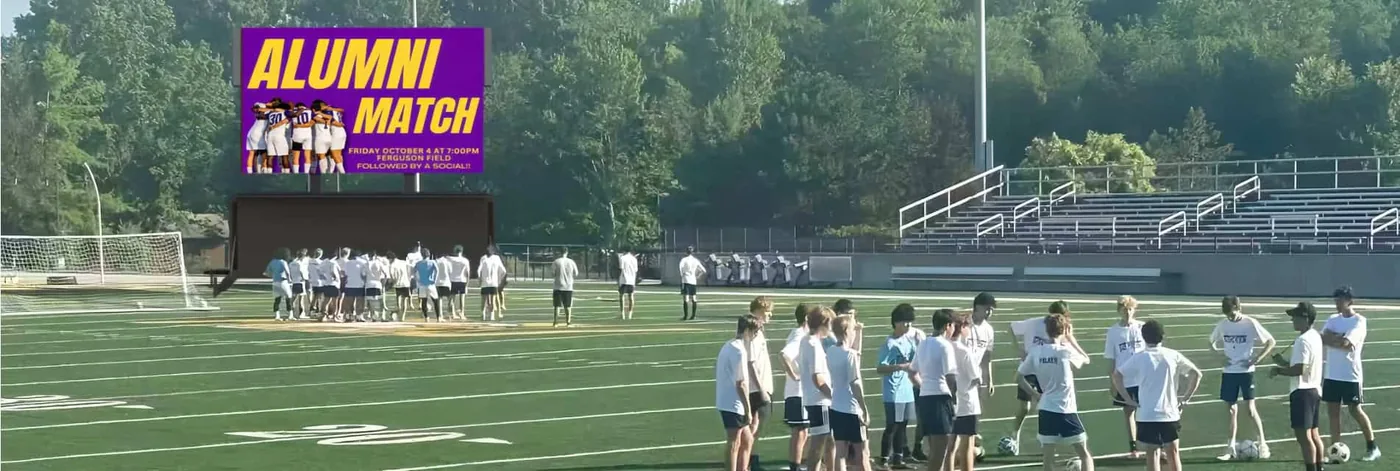

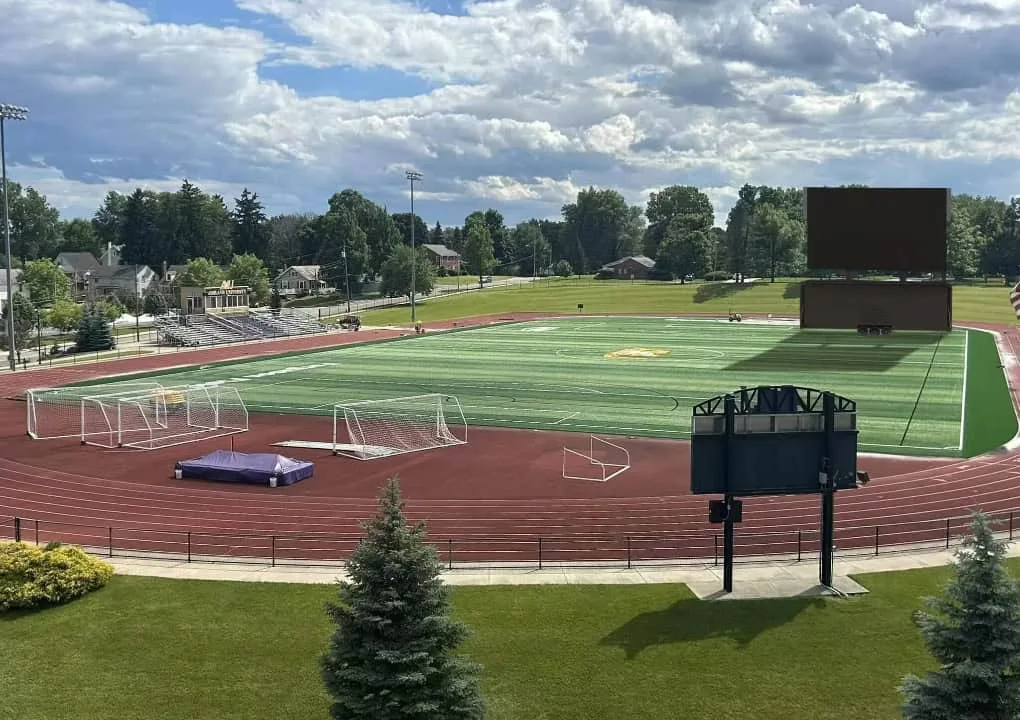

The MB-60E exists for the jobs a ground-stacked wall does with a semi truck, a truss package, and a rigging crew: equestrian, golf, football, and baseball live streaming, concert IMAG, fairs, graduations, and stadium overflow. About 660 square feet of screen arrives on one hitch, and there is no truss structure to build and no crane call, so the screen is running the same morning it arrives on site.

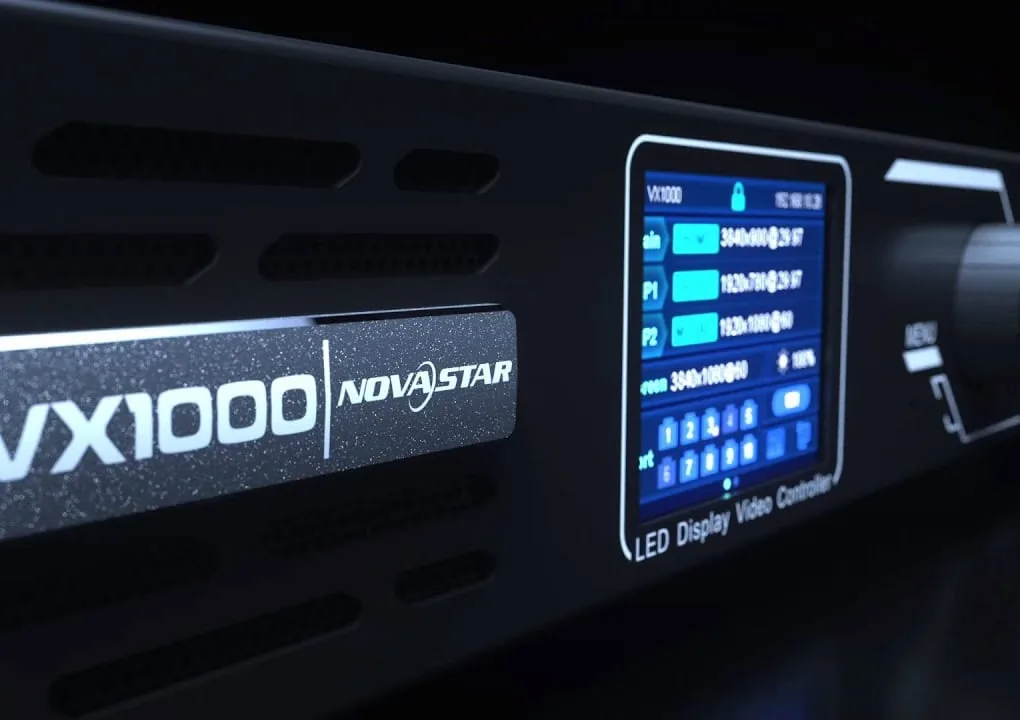

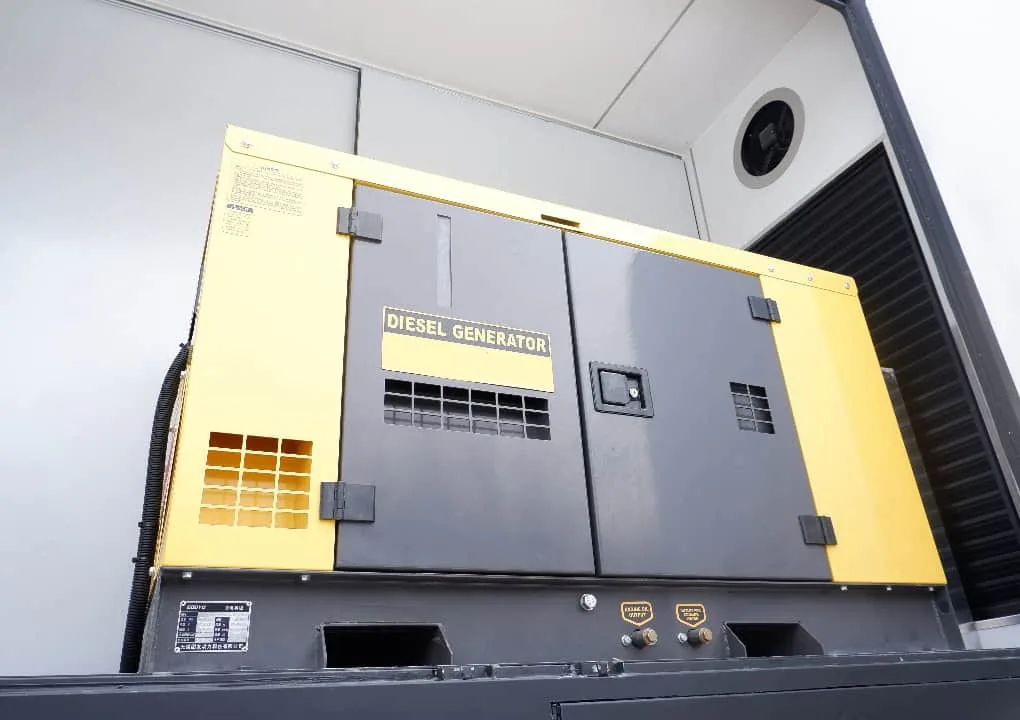

The NovaStar VX1000 processor is the reason broadcast crews like this trailer. With 3G-SDI alongside HDMI and DVI, it takes a live program feed directly from a production truck, and the 7,680 Hz refresh holds up on camera. Power is 480V shore service or the optional 16 to 60 kW super-silent onboard diesel generator, with average draw around 20 kW in normal content.

At 22,000 pounds on tridem axles, this is a commercial tow: gooseneck or heavy bumper-pull, and we confirm the tow vehicle and site access with you before the order. The chassis is US DOT approved, the deployed screen is rated for 45 mph winds, and MOBO backs the screen for 10 years and the chassis for 5. Pricing is built to order, so ask us for current numbers.
