MOBO MB-5 Lite

Name: MOBO MB-5 Lite LED Screen Trailer
Brand: MOBO
Price: 30000.00 USD
Availability: InStock

9.84' x 4.92' LED screen

The entry point to the MOBO line. A real outdoor LED screen on a trailer a half-ton pickup tows without thinking about it.

The MB-5 Lite puts a 9.84 by 4.92 foot outdoor LED display on a simple, DOT-compliant single-axle trailer with a 2,100 lb GVWR. The hydraulic mast raises the screen in about 10 minutes with one operator, rotates it a full 360 degrees, and the whole rig runs off a standard 120V, 30A connection or a small generator. If you are starting a screen rental business, adding video to a small event operation, or parking an electronic billboard outside your storefront, this is the least expensive way into a MOBO.

From $30,000 market price

Built to order. Quote includes delivery, configuration, and current factory lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

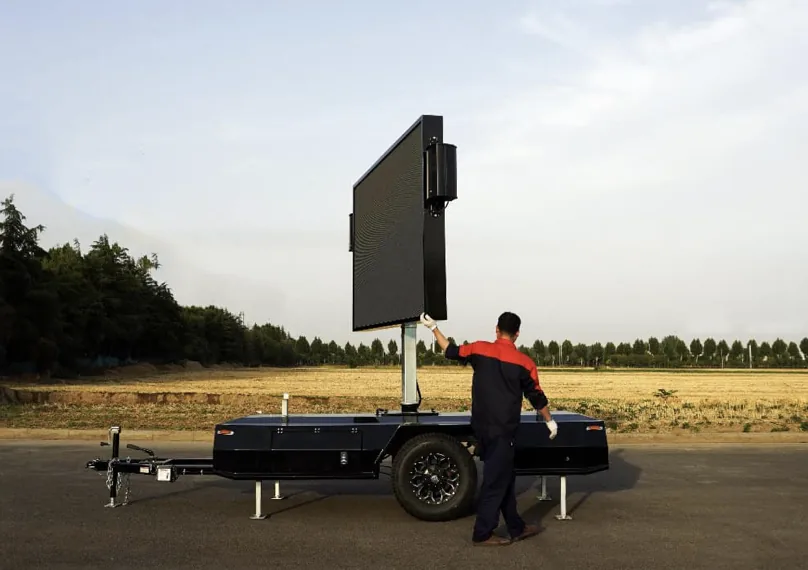

MOBO MB-5 Lite LED screen trailer with screen raised in an open field

Configurations

MOBO MB-5 Lite configurations and pricing

Current published market pricing from the MOBO US price list. Delivery quoted separately by destination.

Pixel pitch	Brightness	Refresh rate	Market price
3.91 mm	7,500 nits	7,680 Hz	$30,000

Full specifications

MOBO MB-5 Lite factory specifications

From the MOBO factory cut sheet. Download the full document below for drawings and detail views.

Trailer type	Platform trailer, single axle
Transport dimensions (with drawbar)	14' L x 5.25' W x 8.7' H
GVWR	2,100 lbs
Tires and rims	LT265/70R16 on 8" x 16" aluminum alloy rims
Brakes	Electric brakes with hand brake and breakaway kit
Coupler	2-5/16" ball coupler
Stabilizers	4 outrigger legs
Wind rating (deployed)	45 mph
Finish	Glossy black standard, custom RAL colors available
Screen dimensions	9.45' W x 5.25' H (2,880 x 1,600 mm)
Pixel pitch	3.91 mm as sold, other pitches on request
Brightness / refresh (as sold)	7,500 nits, 7,680 Hz
Screen cabinet	Iron, rear access, IP65 rated
Viewing angle	140 degrees horizontal and vertical
Screen lift	Hydraulic, screen top about 11.5 ft above ground
Screen rotation	360 degrees continuous
Hydraulics	1.5 kW pump, aviation hydraulic fluid, wire remote
Controller	NovaStar TB-40, HDMI input up to 1080p60, WiFi and 4G capable
Power	4,000 W max screen draw, about 1,300 W average, 120V, 30A twist-lock inlet
Working temperature	-4 F to 175 F
Warranty	3 years standard, extendable to 5 years

MOBO MB-5 Lite trailer cut sheet (PDF) MOBO MB-5 Lite line drawing (PDF)

Dealer notes

Where the MB-5 Lite fits

Most first-time trailer buyers land here, and for good reason. The MB-5 Lite keeps the parts that matter, a waterproof IP65 LED screen, a hydraulic mast with continuous 360-degree rotation, aviation-grade hydraulic fluid rated for extreme temperatures, and a NovaStar control system you can drive from a laptop, phone, or over WiFi and 4G. It skips the extras like onboard speakers to hit a price that a small business can actually justify.

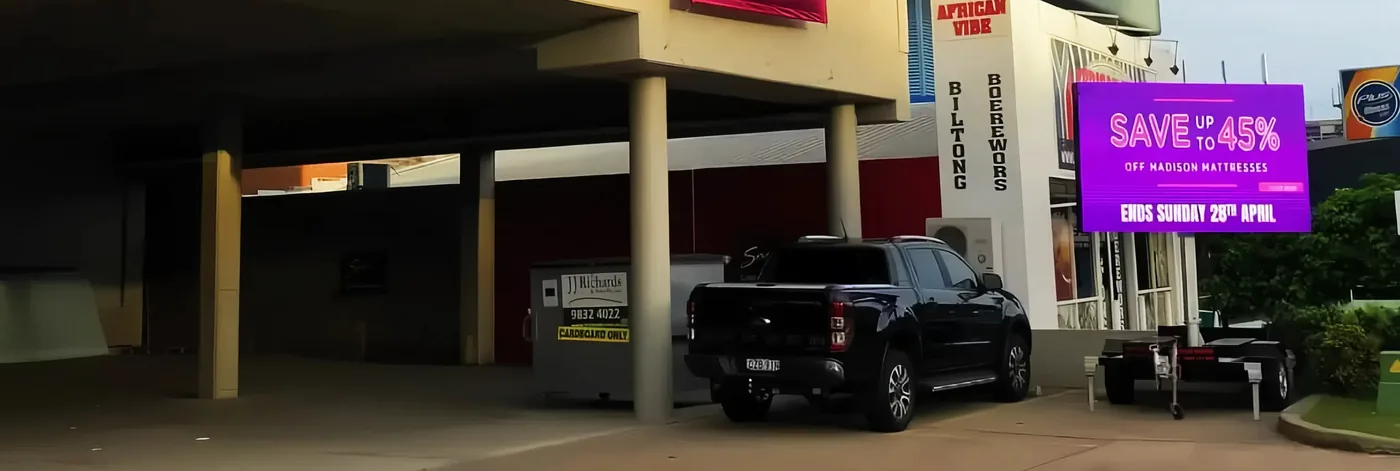

In practice the Lite earns its keep on movie nights, tailgates, graduations, watch parties, tent sales, and storefront advertising. The screen tops out around 11.5 feet above the ground when raised, high enough to clear a crowd or a parking lot full of cars. Add the optional speaker package, screen cover, or a super-silent onboard generator if you want a fully self-contained rig, and glossy black is standard with custom RAL colors available.

Every MB-5 Lite is DOT compliant with a NHTSA-decodable VIN, electric brakes with a breakaway kit, and DOT-approved lighting and tires, so registration is paperwork, not a project. We deliver nationwide, walk you through first setup, and stay on call afterward.
