MOBO · Deluxe LED Trailer

MOBO MB-15

Name: MOBO MB-15 LED Screen Trailer
Brand: MOBO
Availability: InStock

17' x 10' LED screen

A 17 by 10 foot screen that arrives on a bumper hitch. Big enough for festivals, small enough to run daily.

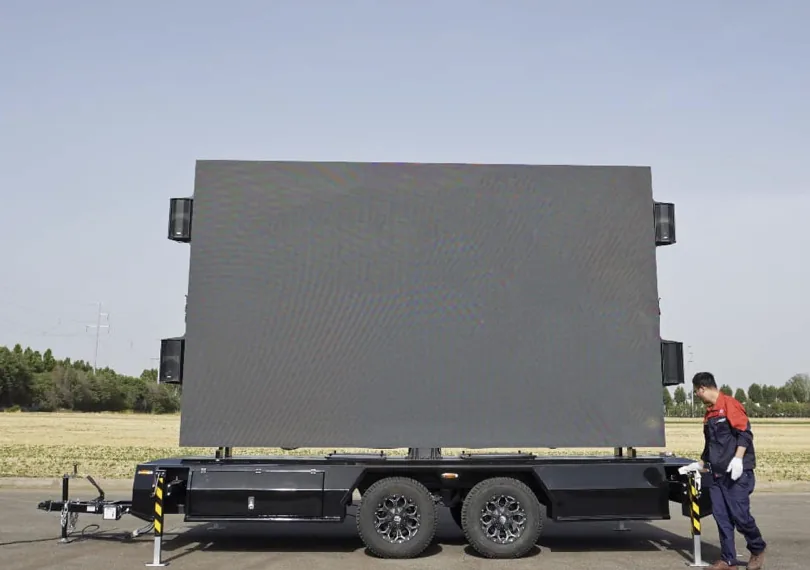

The MB-15 is MOBO's high-end live event trailer, a 17 by 10 foot fine-pitch LED screen, roughly 160 square feet, folded onto a tandem-axle chassis with a 7,600 lb GVWR. The hydraulics unfold and raise the screen top to 18 feet, rotate it a continuous 360 degrees, and one operator handles the entire deployment in about 15 minutes. Compare that against the crew, truck, and hours behind a ground-supported rental wall of the same size and the trailer pays for itself fast.

From $75,000 market price

Built to order. Quote includes delivery, configuration, and current factory lead time.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

MOBO MB-15 LED screen trailer with 17 by 10 foot screen raised on a tandem-axle chassis

Configurations

MOBO MB-15 configurations and pricing

Current published market pricing from the MOBO US price list. Delivery quoted separately by destination.

Pixel pitch	Brightness	Refresh rate	Market price
3.91 mm	7,500 nits	7,680 Hz	$90,000
3.91 mm	5,500 nits	3,840 Hz	$75,000

Full specifications

MOBO MB-15 factory specifications

From the MOBO factory cut sheet. Download the full document below for drawings and detail views.

Trailer type	Platform trailer, tandem axle
Transport dimensions (with drawbar)	23' L x 6.7' W x 8.66' H
Operating dimensions	23' L x 6.7' W x 18' H
GVWR	7,600 lbs
Tires and rims	LT265/70R16 on 8" x 16" aluminum alloy rims
Brakes	Electric brakes with hand brake and breakaway kit
Coupler	2-5/16" ball coupler
Stabilizers	4 outrigger legs
Wind rating (deployed)	45 mph
Screen dimensions	16.4' W x 9.84' H (5,000 x 3,000 mm)
Pixel pitch	3.91 mm as sold (2.9 and 4.81 mm on request)
Resolution at 3.91 mm	1280 x 768 pixels
Screen cabinet	Die-cast aluminum, about 16.5 lbs per cabinet, IP65 rated
Viewing angle	140 degrees horizontal and vertical
Screen lift	Hydraulic, screen top 18 ft above ground
Screen rotation / folding	360 degrees continuous, 180-degree fold for transport
Hydraulic control	Wireless remote plus wired panel, 1.5 kW pump, aviation hydraulic fluid
Audio	4 waterproof speaker sets (30/60 W) with 360 W amplifier

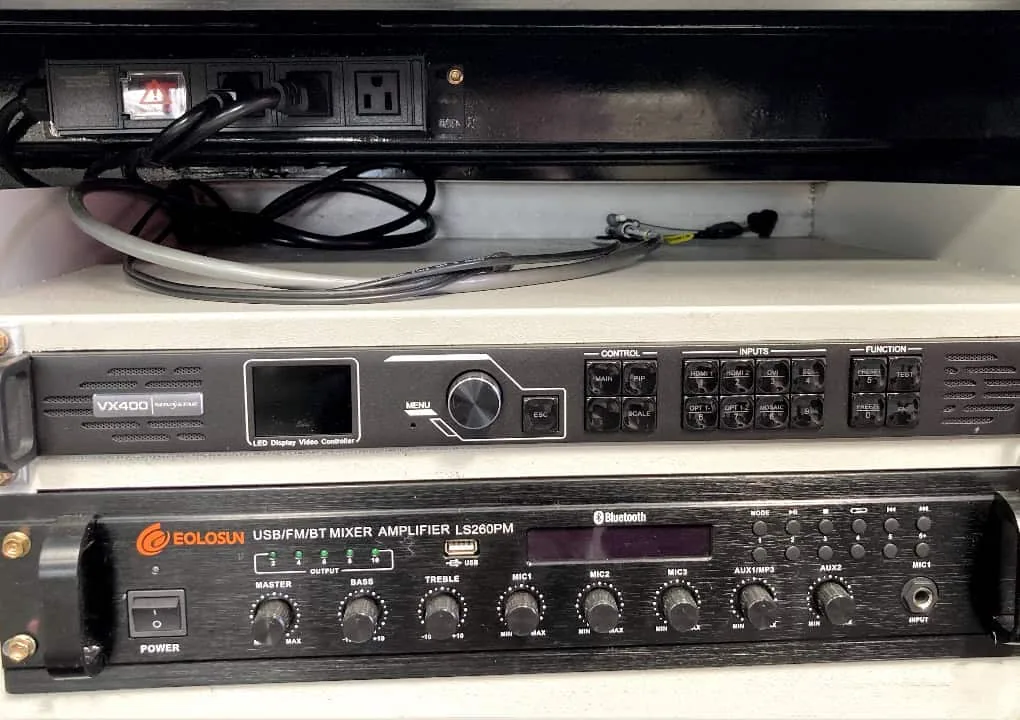

Video processor	NovaStar VX400: DP, HDMI, VGA, DVI, CVBS, SDI inputs
Power	9,600 W max screen draw, about 4,425 W average, plus about 2,100 W equipment, 120V, two 50A twist-lock inlets
Working temperature	-4 F to 175 F
Warranty	3 years standard, extendable to 5 years

MOBO MB-15 trailer cut sheet (PDF) MOBO MB-15 line drawing (PDF)

Dealer notes

Where the MB-15 fits

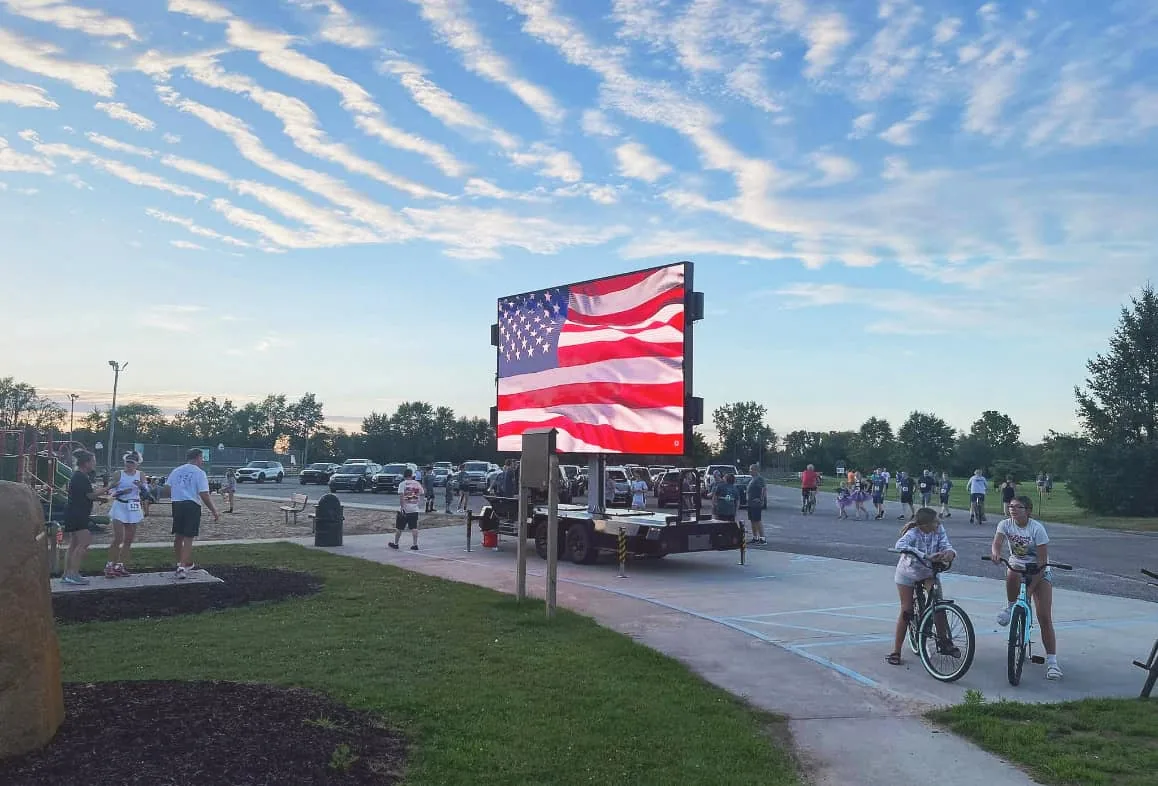

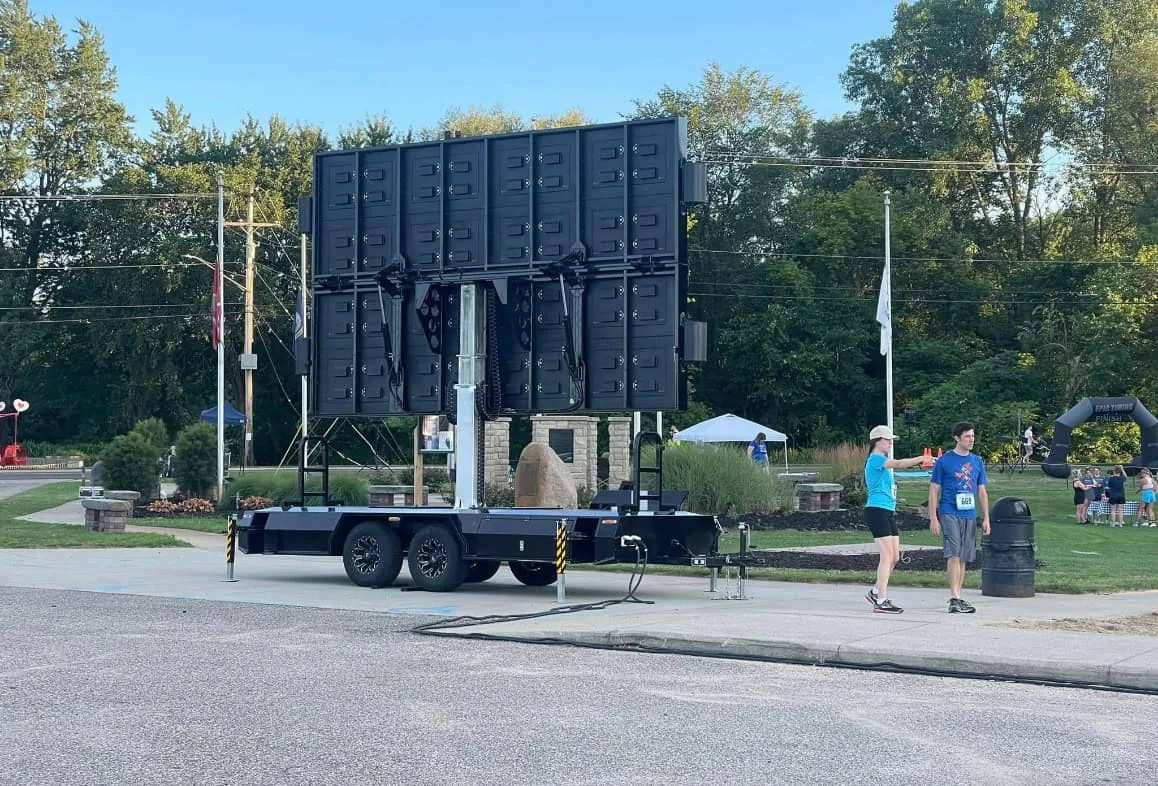

At 17 by 10 feet the screen reads clearly to audiences of a thousand or more, which is why the MB-15 shows up at festivals, sports broadcasts, fan zones, races, and city events. Production companies like the 7,680 Hz refresh option because broadcast and phone cameras see clean video, and the 3.91 mm pitch keeps close-range viewing sharp for stage-side and concourse duty.

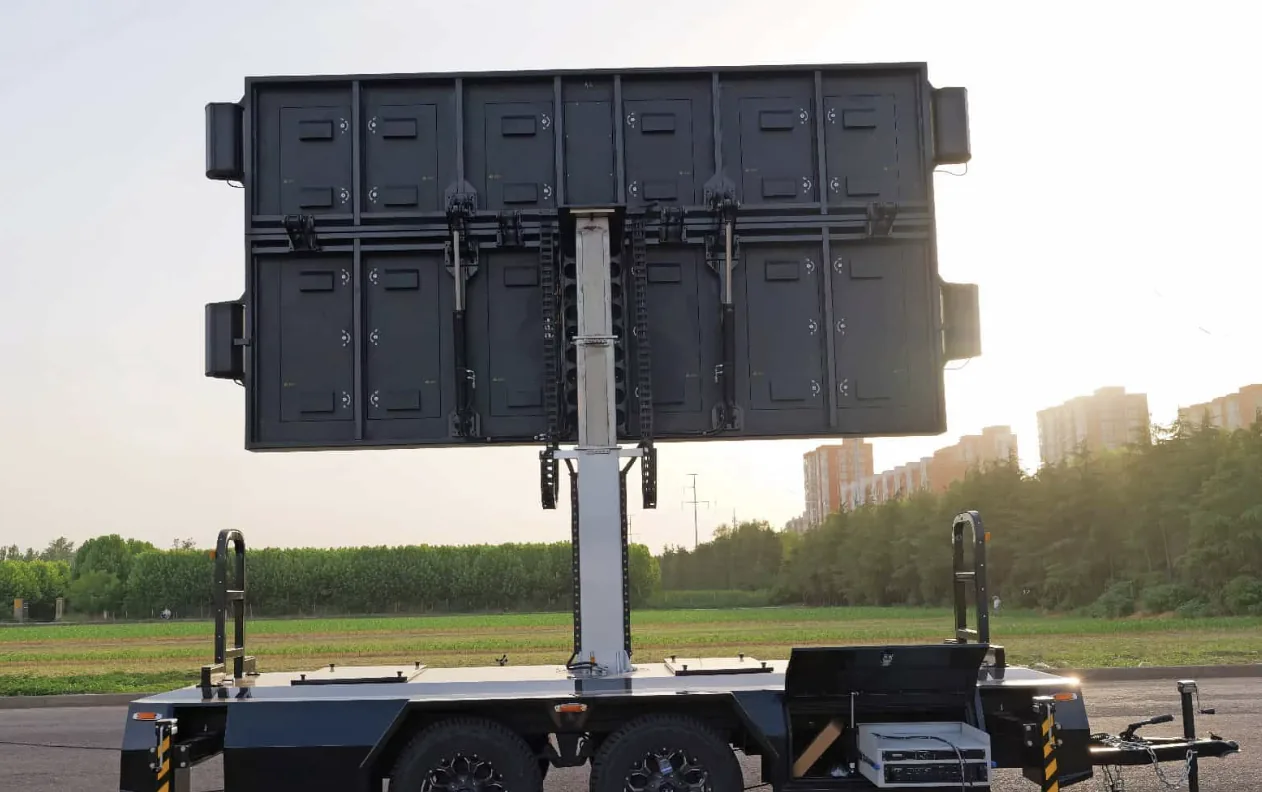

The platform is the same proven MB-10 architecture scaled up: die-cast aluminum IP65 cabinets, NovaStar VX400 processing with DP, HDMI, DVI, SDI, VGA, and CVBS inputs, four waterproof speaker sets with a 360-watt amplifier, and a folding mast that splits the screen into two faces for double-sided advertising in transport mode. Power is 120V through two 50A twist-lock inlets, with roughly 9,600 watts of maximum screen draw, and an optional super-silent generator makes it fully self-contained.

Choose the 7,500 nit, 7,680 Hz configuration for daytime and on-camera work, or save 15,000 dollars with the 5,500 nit, 3,840 Hz build if your calendar leans toward evening shows. Either way the chassis is DOT compliant with electric brakes and a breakaway kit, and we deliver and commission nationwide.
