How many ATL328 boxes do I need per side?

It depends on room depth, audience size, and target SPL. The system scales from compact hangs to 24 modules in a single TUV-certified frame, so the same boxes cover small rooms and large events. Send us the room and we will size the array count per side for you, free.

What amplifier does the ATL328 need?

None. The ATL328 is fully active with onboard Class D 1,800W peak 2-channel amplification and integrated DSP. No external amp racks or processors are required.

Authorized Avante Audio Dealer

Avante AKRO ATL328

Name: Avante Audio AKRO ATL328 Dual 8-inch 2-Way Active Line Array
Brand: Avante Audio
SKU: ATL328
Price: 2199.99 USD
Availability: InStock

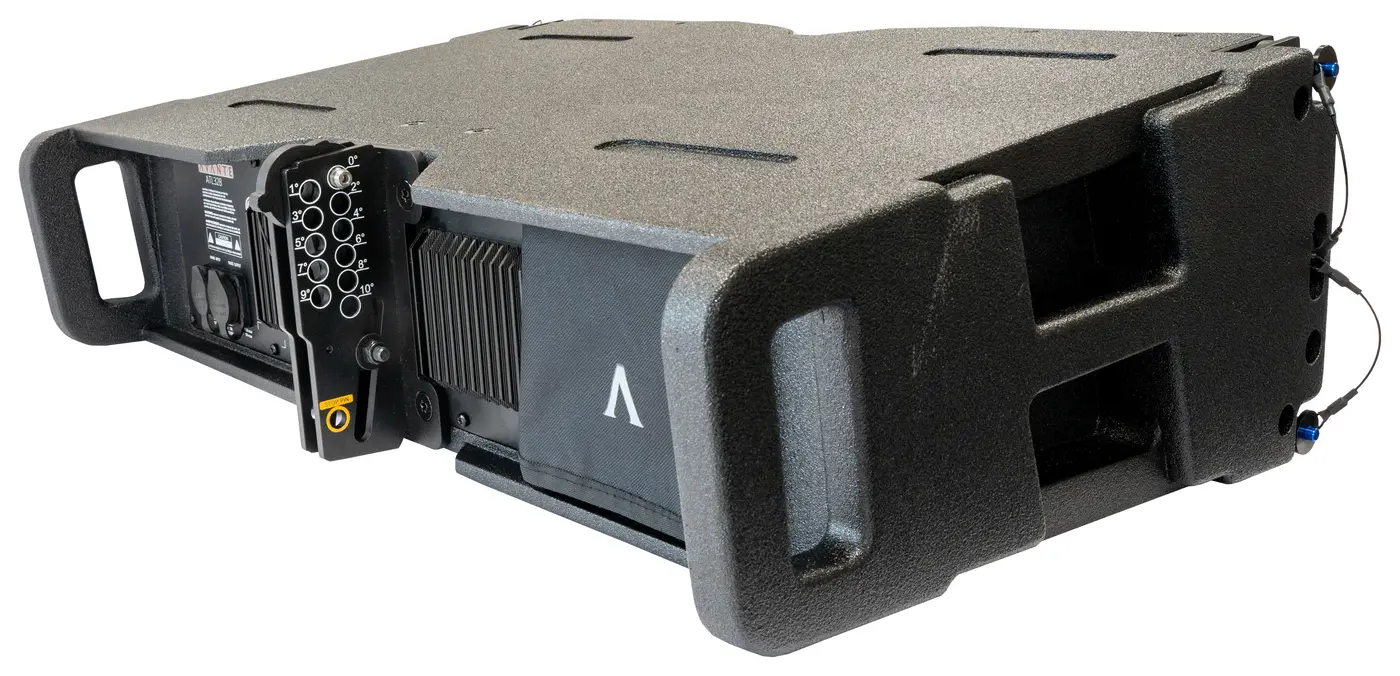

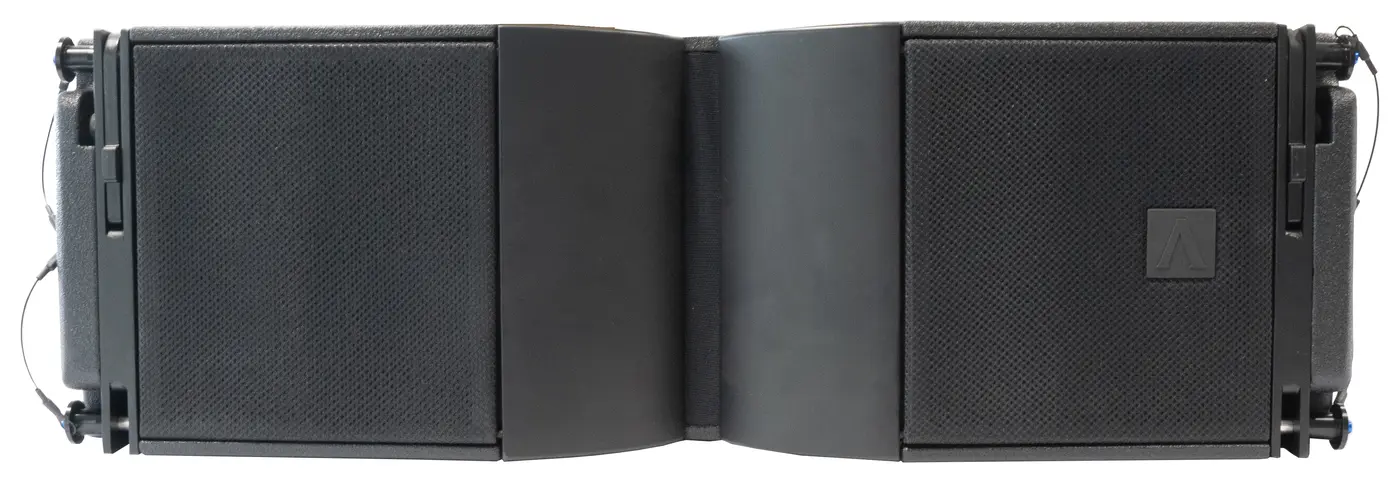

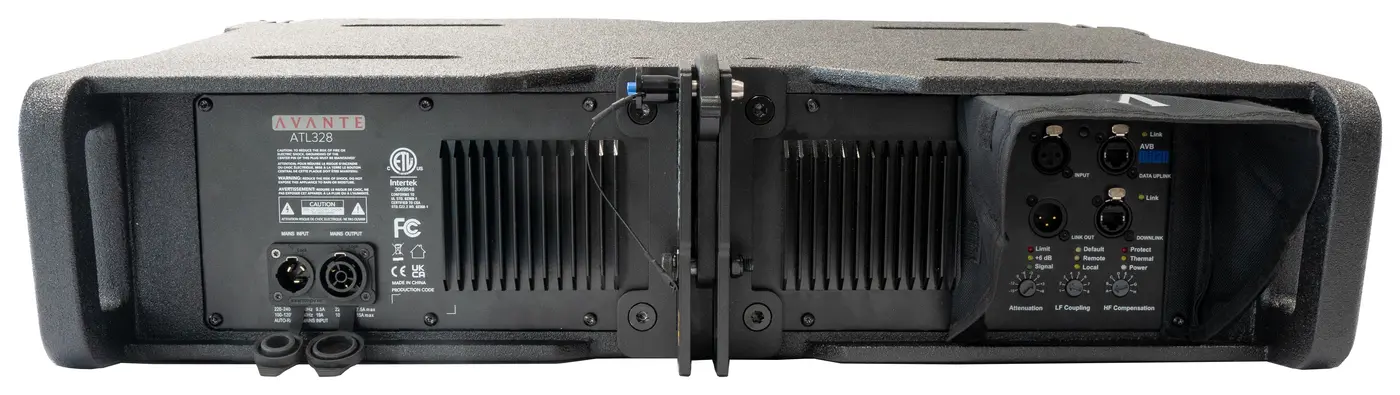

The Avante Audio AKRO ATL328 is a professional dual 8-inch 2-way active small-format line array engineered for medium to large events. Twin 8-inch neodymium LF drivers, a 4-inch MF driver, and a 2.55-inch HF compression driver, powered by 1,800W peak Class D 2-channel amplification. 70Hz to 20kHz, 132dB peak, 110 degree horizontal coverage. Milan-certified networked DSP controlled through AKRO-Command software. Pairs nicely with the AKRO ATS218 dual 18-inch subwoofer.

$2,199.99 MAP each

Quote includes shipping, array packages, rigging, and current lead time. ACH discounts available.

Request Quote Call 210.489.0492

Most quotes sent same business day. Real people, no scripts.

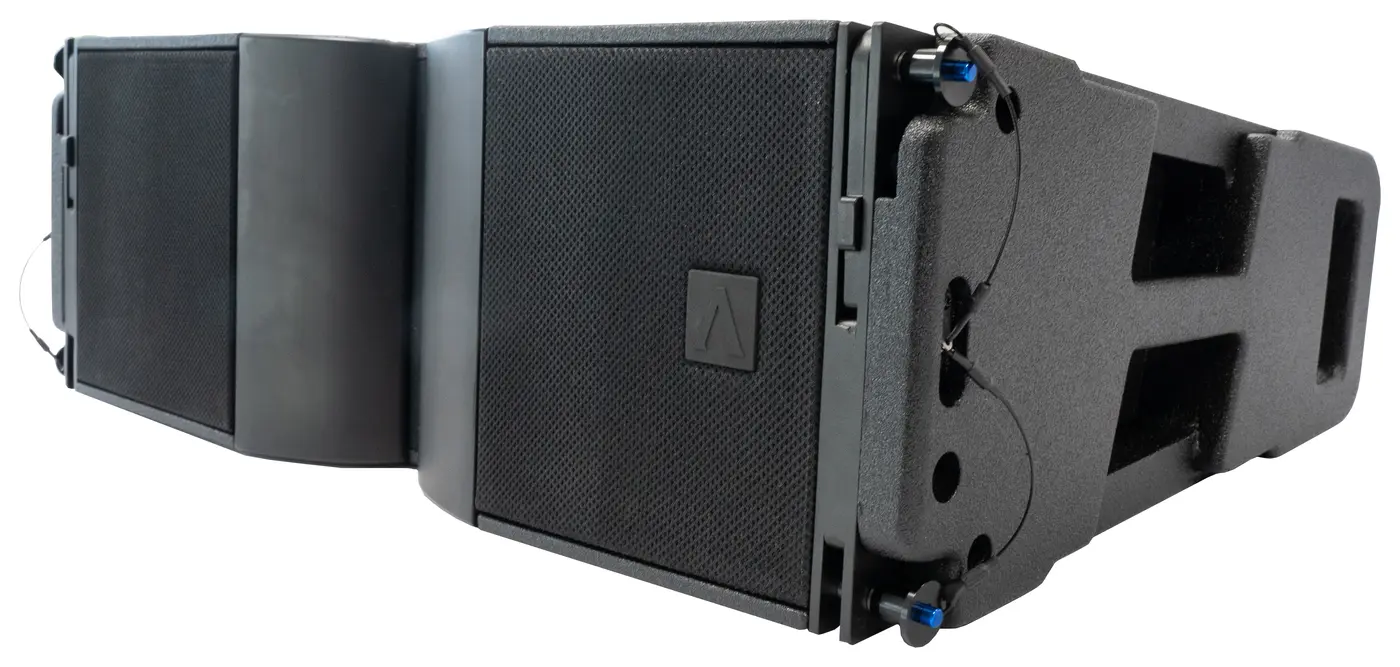

Avante Audio AKRO ATL328 dual 8-inch 2-way active line array module, angled front view

Specifications

AKRO ATL328 spec sheet

From the Avante Audio data sheet. Ask us for the full cut sheet and array prediction support.

Configuration	Dual 8-inch 2-way active small-format line array
Frequency response	70 Hz – 20 kHz (-6 dB)
Max SPL	132 dB peak
Drivers	2 × 8″ neodymium LF + 4″ MF + 2.55″ HF compression driver
Crossover	600 Hz
Amplification	Class D, 1,800 W peak, 2-channel
Horizontal coverage	110°
DSP / networking	Milan-certified networked DSP with AKRO-Command software
Dimensions (H × W × D)	27.4″ × 18.3″ × 9.1″ (696 × 465 × 232 mm)
Weight	61.7 lbs (28 kg)
MAP price	$2,199.99 each

Rigging, transport, protection

ATL328 accessories

Everything that flies, rolls, and protects the array. All quoted alongside the boxes. See the full Avante lineup.

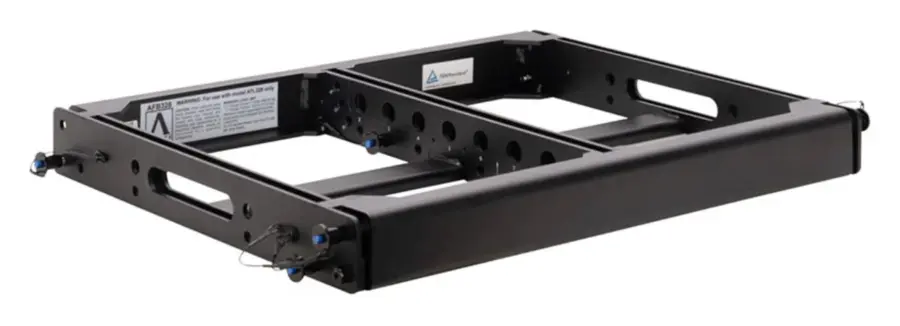

AFB328 Flybar

Avante Flybar for ATL328. Designed and TUV certified to safely rig and fly up to (24) AKRO ATL328 in one array frame.

$719.99MAP each

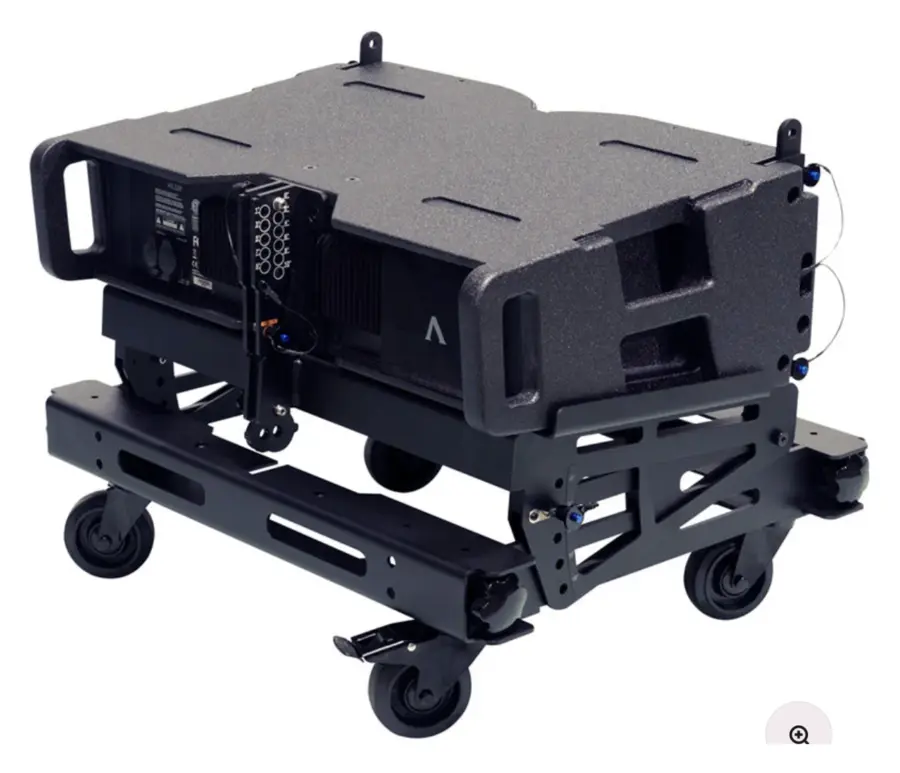

ATC328 Transport Cart

Safely supports and transports up to 5 ATL328 modules. Doubles as a ground-support platform with ASB328 stabilizer bars, stores one AFB328 flybar. Heavy-duty 4-inch casters with brakes.

$929.99MAP each

ASB328 Stabilizer Bar Kit

For use with ATC328 and IGS205. Increases stability and safety in ground-stack applications. Includes two bars and lock pins.

$364.99MAP / kit

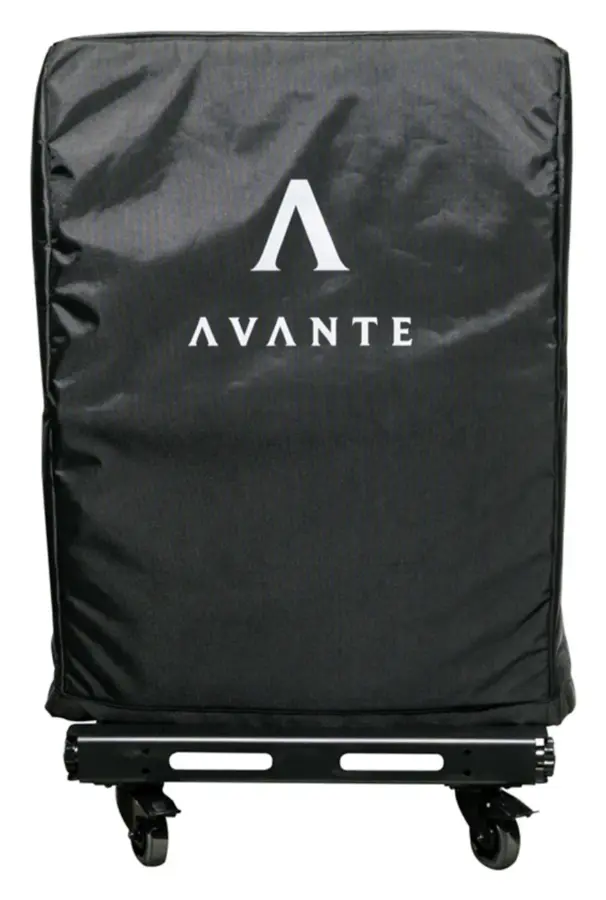

Avante CVR328 protective canvas cover fitted over four ATL328 modules

CVR328 Cover

Durable protective canvas cover for use with (4) ATL328.

$79.99MAP each

AXB328 Extension Lifting Bar

Extension lifting bar for the AFB328 flybar, used when the hang calls for greater array angles.

Call for pricing210.489.0492

Buyer research

ATL328 questions, answered

What venue owners, integrators, and production companies ask before buying.

Can the ATL328 be flown, and how many boxes per array?

Yes. The AFB328 flybar is designed and TUV certified to safely rig and fly up to 24 AKRO ATL328 modules in one array frame. When the room calls for greater array angles, the AXB328 extension lifting bar attaches to the AFB328.

Can the ATL328 be ground-stacked?

Yes. The ATC328 transport cart doubles as a ground-support platform when fitted with the ASB328 stabilizer bar kit, which increases stability and safety in ground-stack applications. Roll it in, lock the casters, stack, and play.

How many boxes do I need per side?

It depends on room depth, audience size, and target SPL. The same box scales from compact hangs to 24 modules in a single TUV-certified frame, so you buy once and grow the array. Send us the room dimensions and application and we size the count per side for you, free, usually the same business day.

Is the ATL328 Milan networked?

Yes. The ATL328 carries Milan-certified networked DSP, managed through Avante's AKRO-Command software for control and monitoring across the whole rig.

What amplifier and processor do I need?

None. The ATL328 is fully active: Class D 1,800W peak 2-channel amplification and networked DSP live inside the cabinet. No amp racks, no external processors, fewer points of failure.

What subwoofer goes under it?

The AKRO ATS218 dual 18-inch active subwoofer ($3,299.99 MAP) is the designed sub partner for the ATL328 and is engineered for medium to the largest events.

System design

This pairs well with

The ATL328 is the top of the AKRO system. Here is how the rest of the rig comes together.

Low end

AKRO ATS218

High-output dual 18-inch active subwoofer, the designed low-end partner for ATL328 arrays. $3,299.99 MAP each.

Rigging

AFB328 + AXB328

TUV-certified flybar flies up to 24 boxes per frame; the AXB328 extension bar adds array angle range when the hang demands it.

Transport

ATC328 + ASB328 + CVR328

Cart carries 5 boxes plus the flybar, converts to a ground-stack platform with the stabilizer kit, and the cover keeps 4 boxes clean in the truck.

Get a real quote

Send a room, get an array design

Tell us the venue, audience size, and program material. We come back with box count per side, subs, rigging, freight, and MAP pricing. One short form.

Request Quote Or call 210.489.0492

Same business day response.
